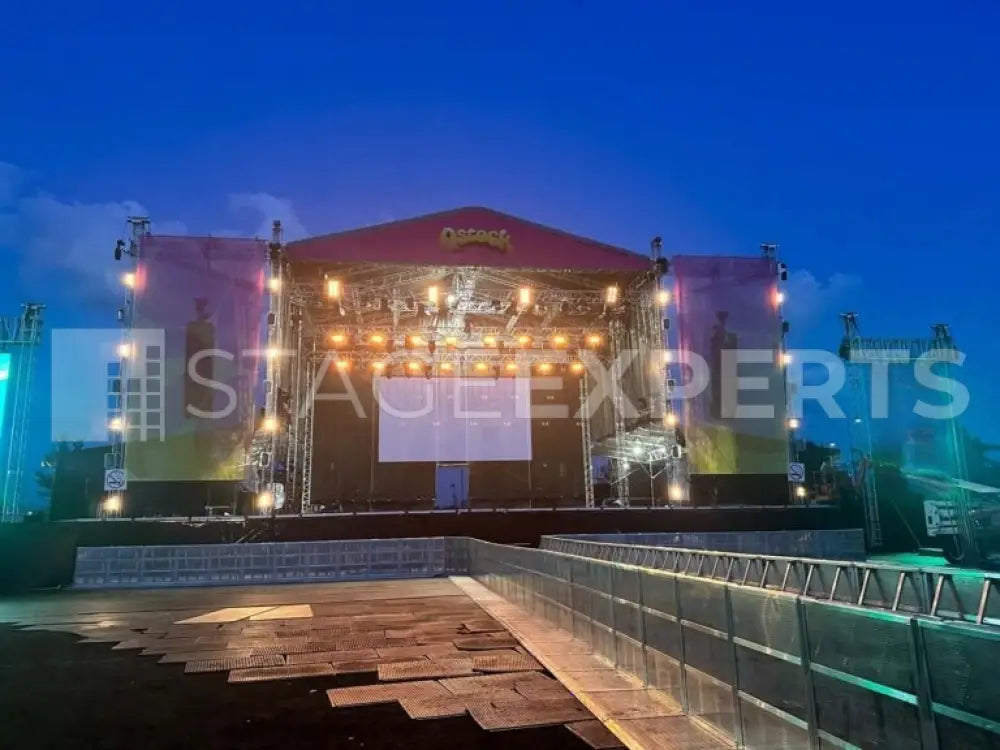

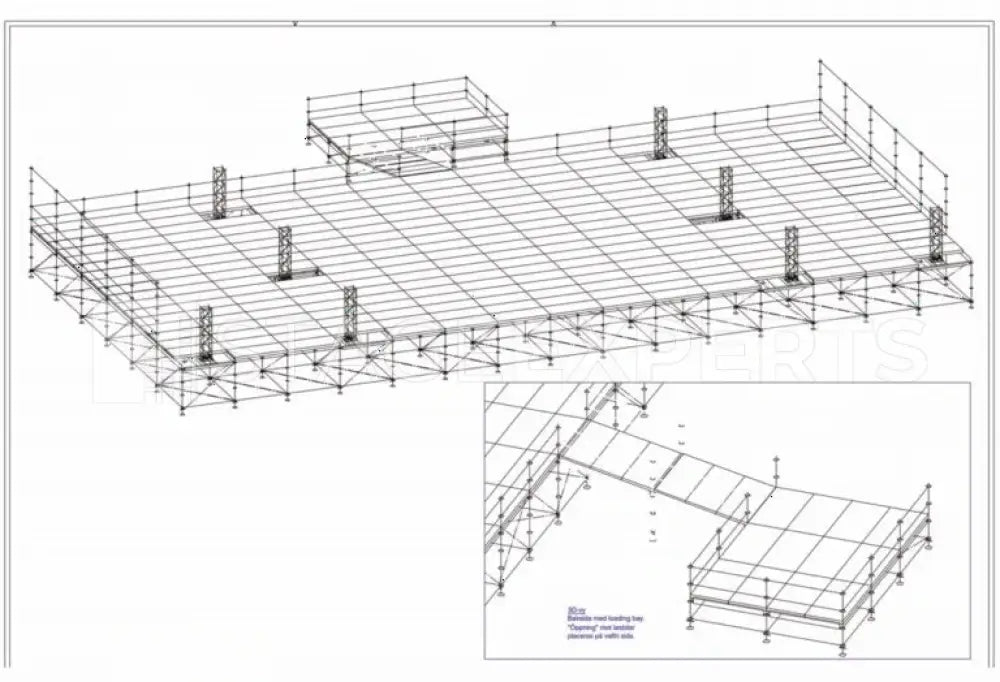

Prolyte’s ST 17 × 14 Stage System is a complete touring roof and deck solution engineered for fast builds, consistent repeatability and safe day-to-day operation. Delivering a 17 m span with a 17 × 14 m usable performance area, it provides an approximate 2 m deck height and 9.5 m trim, giving ample headroom for modern PA and lighting packages. The system includes Layher scaffold with matched truss for a robust roof structure, eight Prolyft PLE12 1,000 kg electric hoists, and a PLE30‑80 controller with full lifting cabling for coordinated lifts. Integrated pre‑rig bays (6.5 × 13 × 2.5 m h) and side wings with 5.3 m reach enable confident deployment of flown systems, supporting 2,000 kg point loads, while the roof accommodates up to 14,000 kg total loading. Documented wind‑loading guidance (up to force 6 with full ballast) and recommended PA scrim sizes to 5.3 × 11 m aid predictable, compliant operation. Two 1.15 m access stairs streamline safe crew and artist movement. Ideal for festivals, outdoor concerts and large touring productions.
Includes

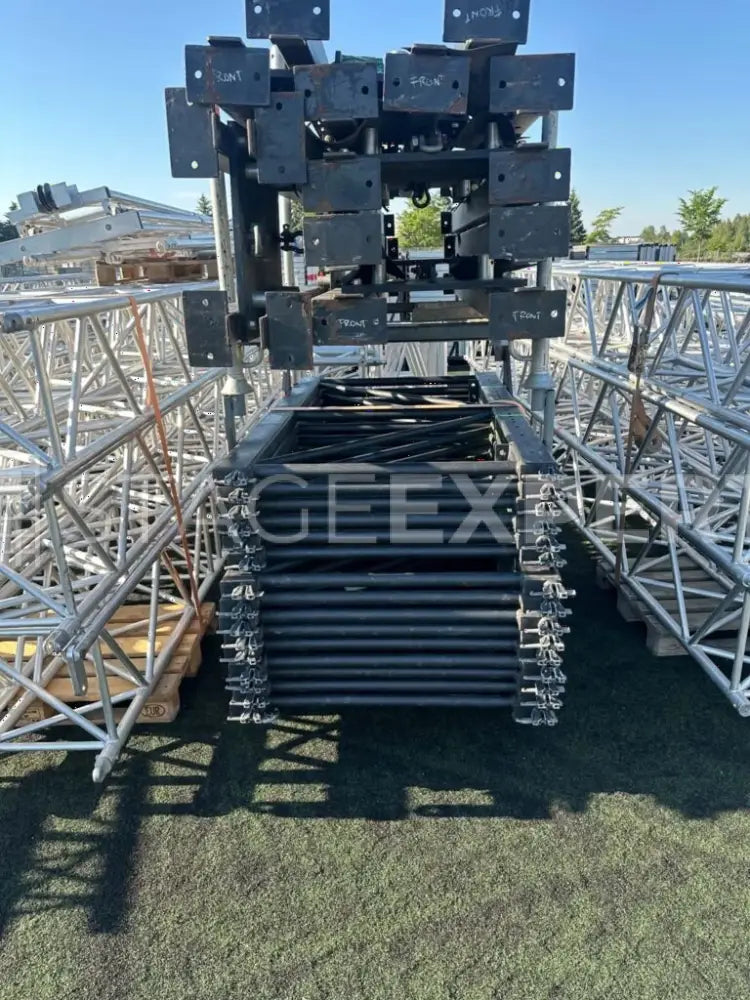

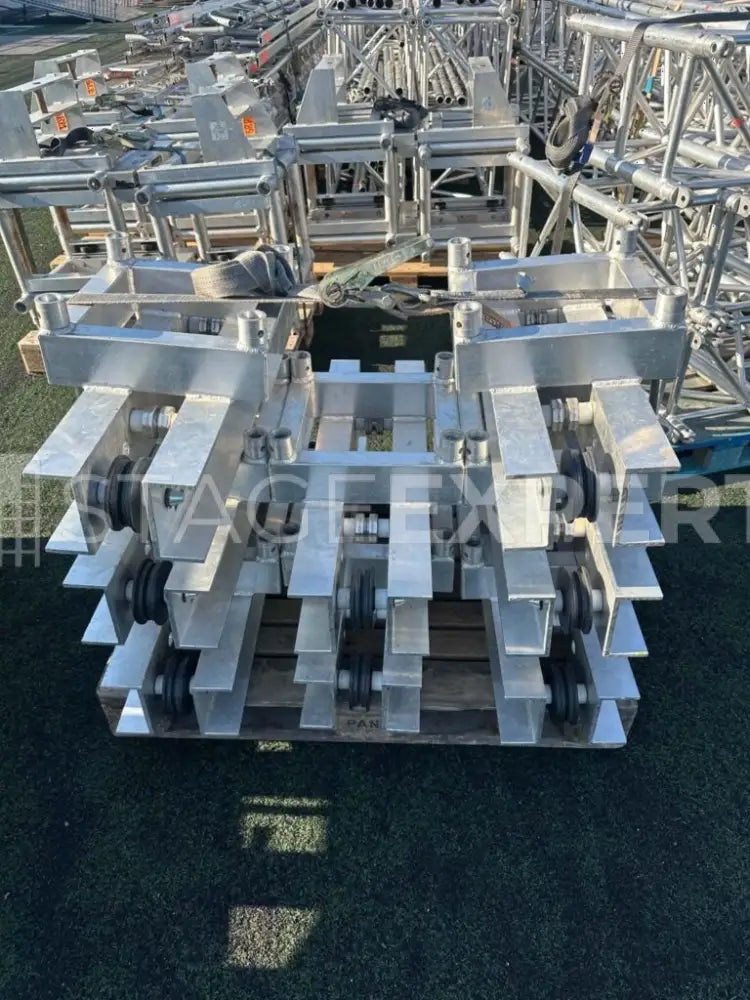

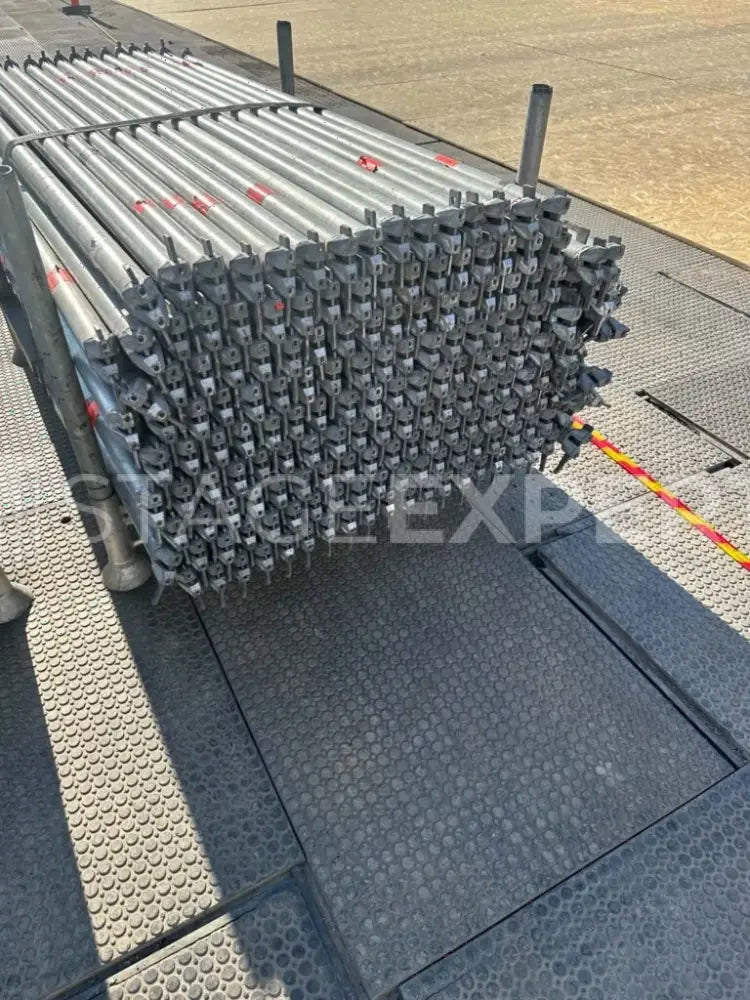

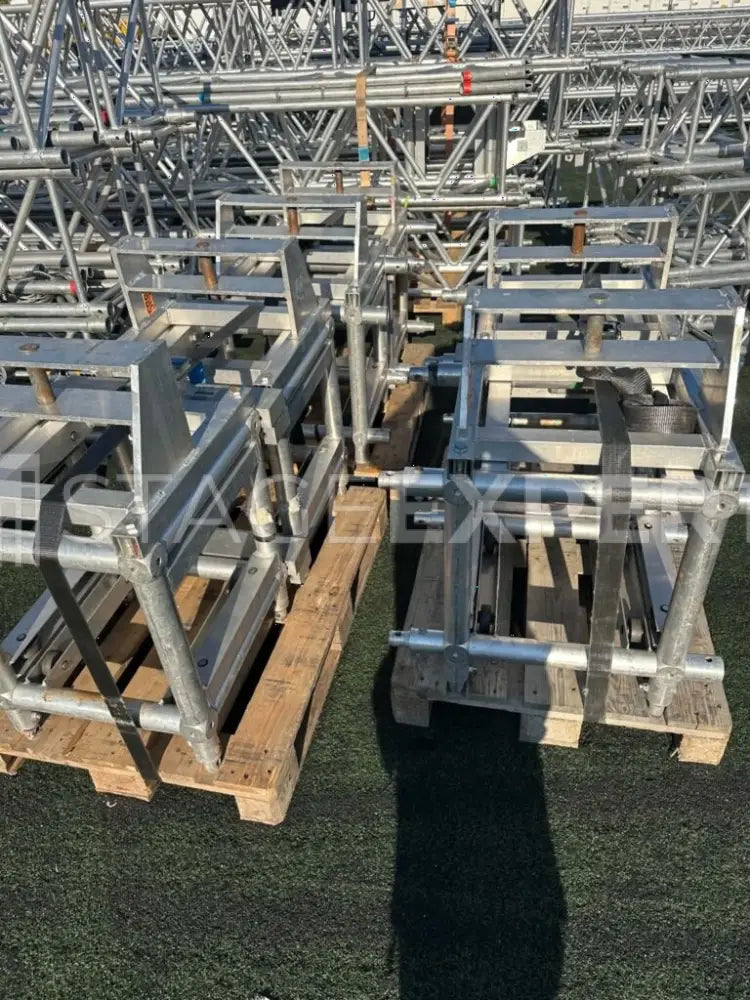

- Layher scaffold with matched truss
- 8 × Prolyft PLE12 1,000 kg electric hoists
- Prolyft PLE30‑80 controller
- Full lifting cabling

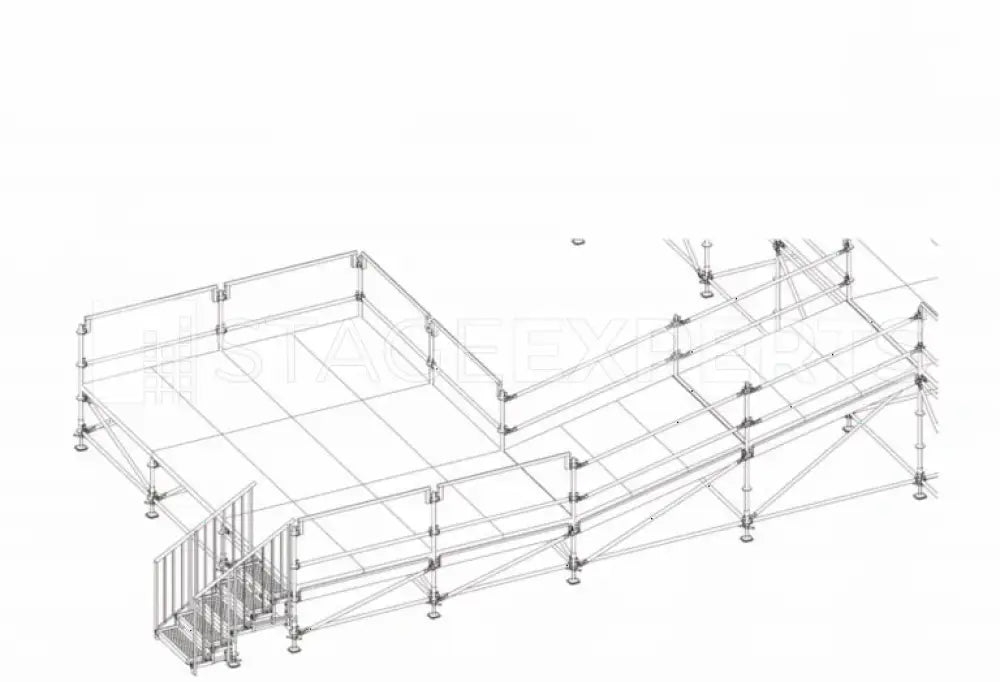

- 2 × 1.15 m access stairs
STAGE9.2.100.89336
