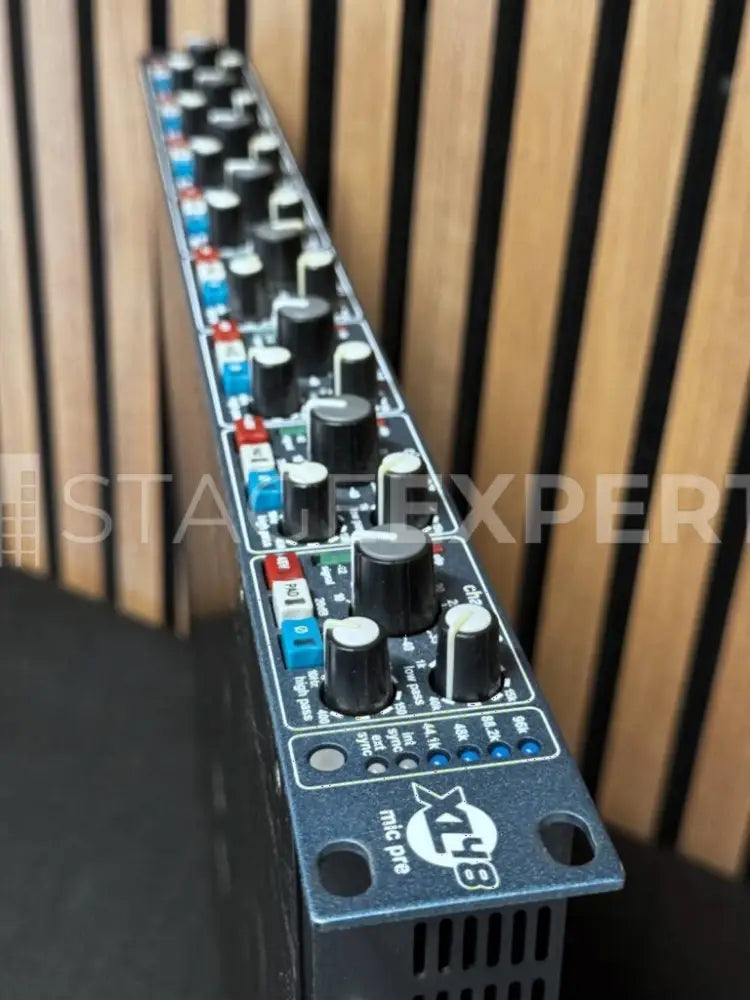

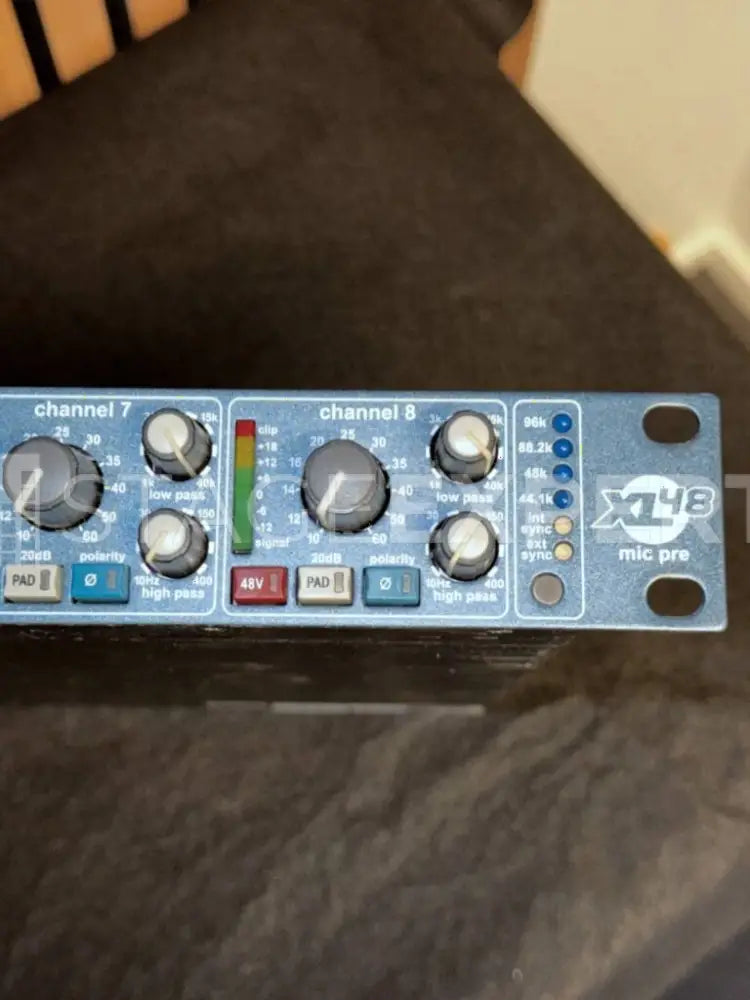

The Midas XL48 is an 8‑channel microphone preamplifier that brings the renowned Midas sound to modern workflows. Each channel offers precise gain control with switchable 48 V phantom power, polarity reverse and a pad for managing hot sources. Onboard high‑pass and low‑pass filters let you sculpt signals at the input stage, while per‑channel LED metering supports confident gain staging in live, broadcast and studio environments.

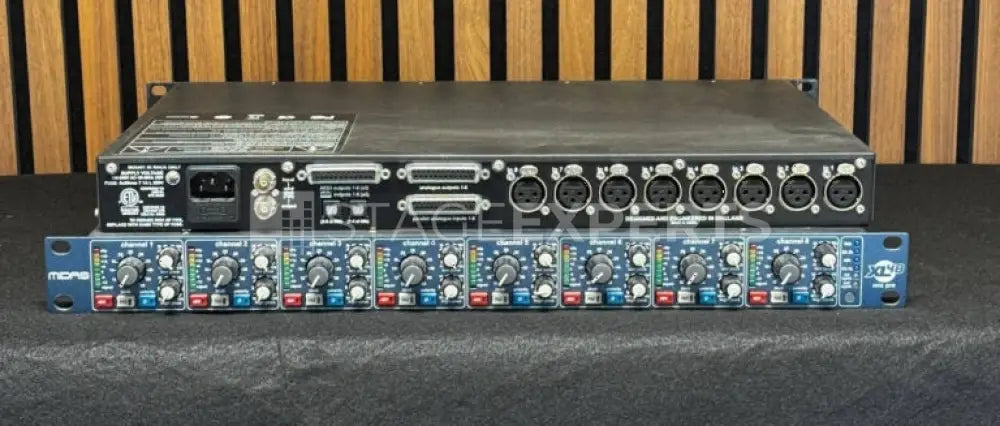

Seamless digital integration is delivered via 24‑bit A/D conversion at 44.1, 48 or 96 kHz, with dual ADAT optical outputs for flexible routing and expansion, plus AES/EBU output for direct connection to consoles, recorders or interfaces. Parallel analogue outputs on DB25 connectors make multifeed setups straightforward, enabling simultaneous recording, broadcast splits or monitor sends without repatching.
Use the XL48 to expand the input count of digital consoles, standardise mic gain across multi‑mic rigs, or create a high‑quality front end for recording systems. It’s a robust, musical preamp solution designed for reliability on stage and precision in the studio.
Includes
- Midas XL48 8‑Channel Mic Preamp with ADAT & AES I/O
