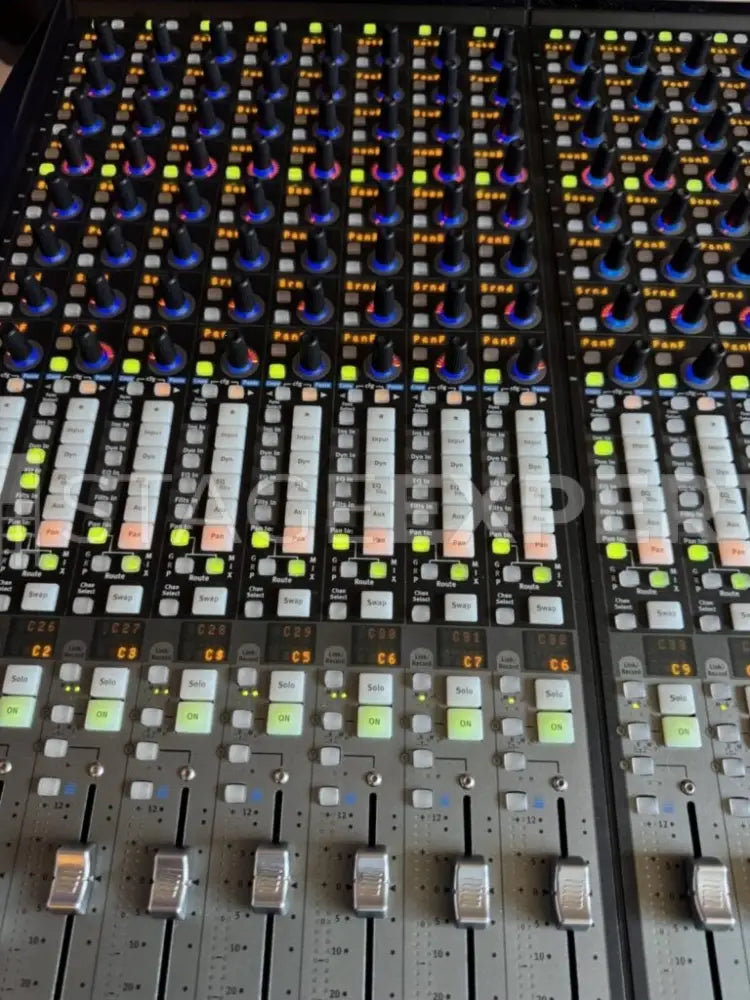

The Avid Euphonix S5 Fusion Hybrid is a 24‑fader professional console that blends a powerful DSP mixing engine with deep DAW control via EUCON. Mix with confidence using high‑quality EQ, dynamics, routing and surround management on dedicated DSP while simultaneously steering Pro Tools, Nuendo or Cubase with tactile precision. Each channel strip provides multi‑format motorised faders and eight touch‑sensitive rotary encoders for instant access to levels, plug‑ins and sends, supported by integrated high‑resolution displays showing metering, track data and EQ curves.
Designed as a compact, cost‑effective alternative to the classic System 5, the Fusion’s studio computer and DSP live in a single rack unit with MADI I/O, delivering up to 116 audio channels at 48 kHz or 58 at 96 kHz. The system supports Dolby Atmos workflows and is EUCON 6.0.1 compatible (Pro Tools 2026 or lower). Supplied with master control, channel modules, joystick and clocking, it’s a complete solution for music, post and broadcast facilities seeking premium tactile control and rock‑solid DSP mixing.
Ideal for high‑end studios requiring integrated DSP and DAW control in an efficient 24‑fader footprint.
Includes
- CM401 Master Control
- 3 x CM408 Channel Strip Modules
- Joystick module
- SC263 system computer (flash boot) with 2 x DSP cards
- 2 x AM713 modules
- MA703 module
- ML530 24‑mic module
- MUTEC clock
- RJ45 cables
