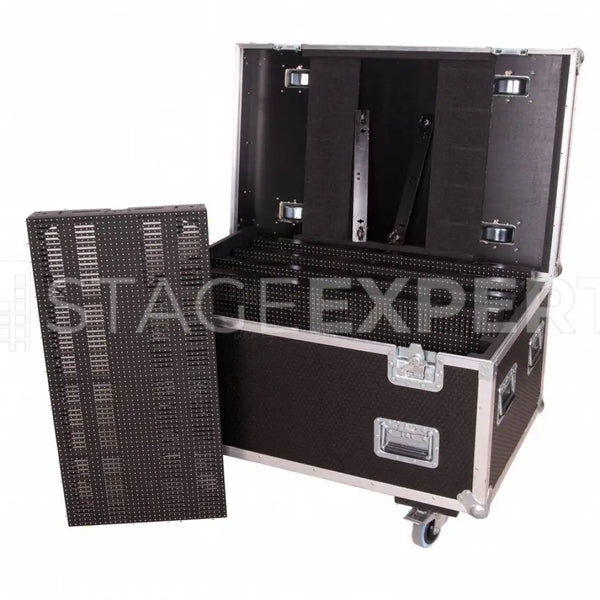

The DMT Pixelmesh P12.5 6.4 m² indoor LED screen set is a complete package for fast, creative deployment. It includes 20 lightweight 400 x 800 mm panels (6 kg each), nine rigging bars, and an LS-125MKII video processor, giving you everything needed to build flat or curved displays. With a 12.5 mm pixel pitch, SMD3528 RGB LEDs and up to 1,200 nits, content remains punchy and legible for corporate, touring and fixed installs. Panels offer 35% transparency for layered looks and can be angled at 15°, 7.5°, 0°, -7.5° or -15° horizontally and vertically. A fastlock system speeds assembly, while convection cooling and front serviceability simplify operation and maintenance. Rated IP44 for indoor use, each panel provides RJ45 data and dedicated power connections, with a sub‑1 kHz refresh. Typical hanging is up to 8 m (10 modules), with reliable performance from 0–45°C and 10–90% RH. An efficient, flexible solution for stages, exhibitions and brand activations seeking eye‑catching LED surfaces.
Includes
- 20 x Pixelmesh P12.5 400 x 800 mm LED panels
- 9 x rigging bars
- 1 x DMT LS-125MKII LED video processor
STAGE6.3.100.995
