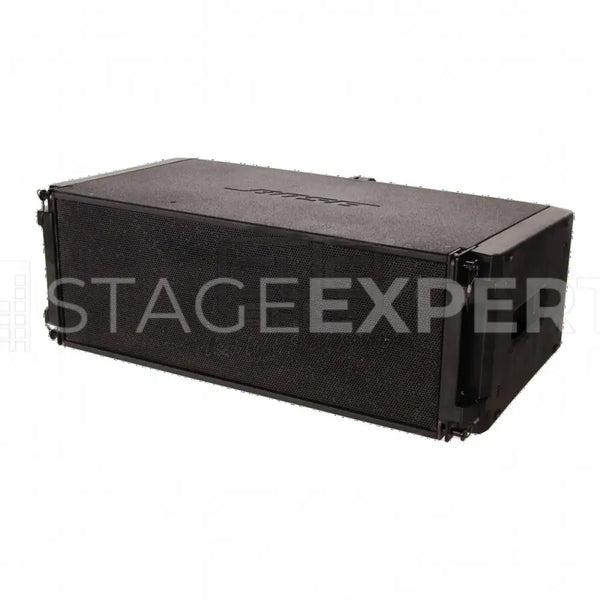

The Bose ShowMatch SM20 is a compact, full-range DeltaQ array module designed for high-output touring and fixed installations. Its 20° nominal vertical pattern delivers long-throw performance with consistent tonality, while DeltaQ technology optimises directivity across the array for uniform coverage and improved vocal clarity. Field-changeable waveguides let you set horizontal coverage to 70° or 100° as standard, enabling precise system tailoring to venue geometry.
High frequencies are reproduced by four EMB2S compression drivers for articulate detail, complemented by dual 8-inch neodymium woofers providing tight, controlled low-mid response. This 2-way passive design requires external amplification (two channels) and DSP, offering a full-range response from 59 Hz to 18 kHz with array peak output up to 145 dB SPL. A 3-point quick-pin rigging system speeds deployment and supports up to 24 modules at a 10:1 safety factor. Removable side rigging guards and handles suit both portable and permanent installs, leaving a clean finish when flown.
Ideal for touring productions, performing arts venues, houses of worship and corporate AV where scalable coverage, intelligibility and tour-ready reliability are essential.
Includes
- Bose ShowMatch SM20 DeltaQ 20° Array Speaker Module | Lin...
STAGE6.1.100.295
