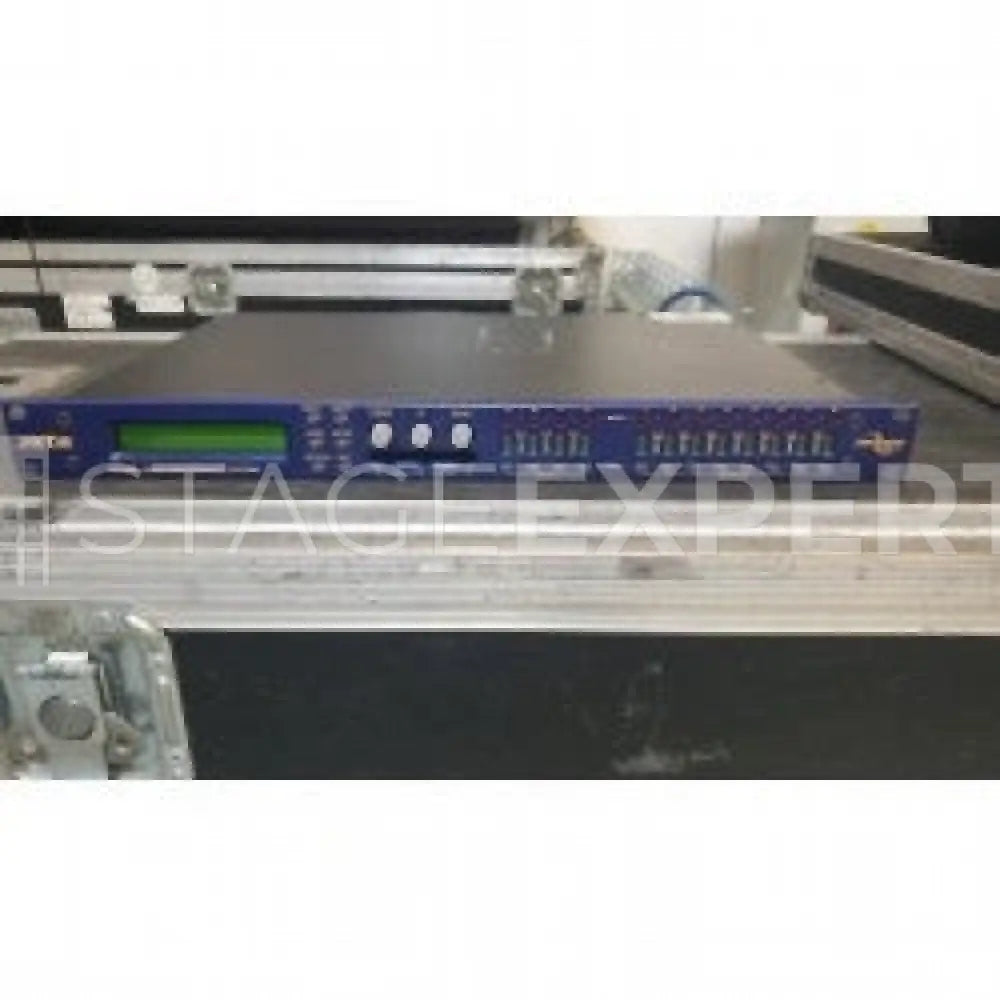

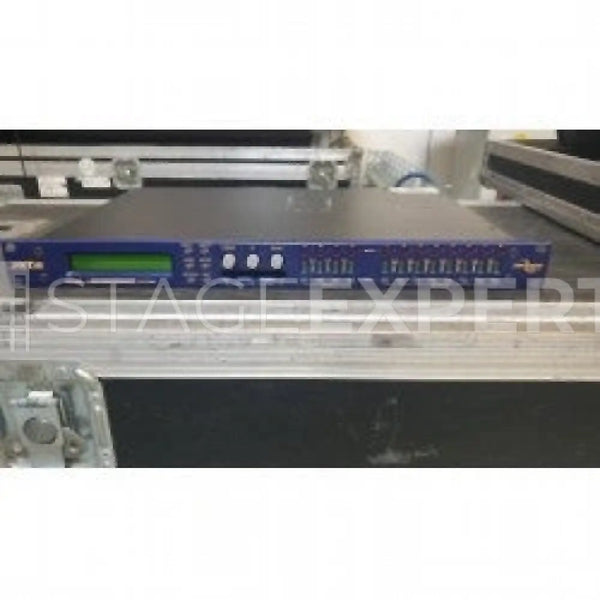

The XTA DP448 is a touring‑grade loudspeaker management processor designed for absolute control, transparency and reliability across modern PA systems. Operating at 96 kHz with 24‑bit conversion and extended 32 kHz bandwidth, it preserves detail and headroom from source to speaker. A flexible 4x8 matrix lets you route any input or input sum to any output, simplifying complex system designs, fills, delays and zoned coverage.
Input processing provides a 28‑band graphic EQ and eight parametric EQs per channel, while each output offers up to nine parametric EQs for precise loudspeaker voicing. Select crossover slopes from 6 to 48 dB/octave, apply phase adjustment in 2‑degree steps and use up to 650 ms of delay on both inputs and outputs for exact time alignment. Integrated RMS limiting manages thermal load, with look‑ahead peak limiting protecting against transients without audible artefacts.
Housed in a rugged 1U chassis with a universal 60–250 V power supply, the DP448 is quick to configure from the front panel or via software. Ideal for touring rigs, theatres, clubs and houses of worship needing consistent, repeatable results with minimal setup time.
Includes
- XTA DP448 Loudspeaker Processor, 96kHz 4x8 | Stage Experts
