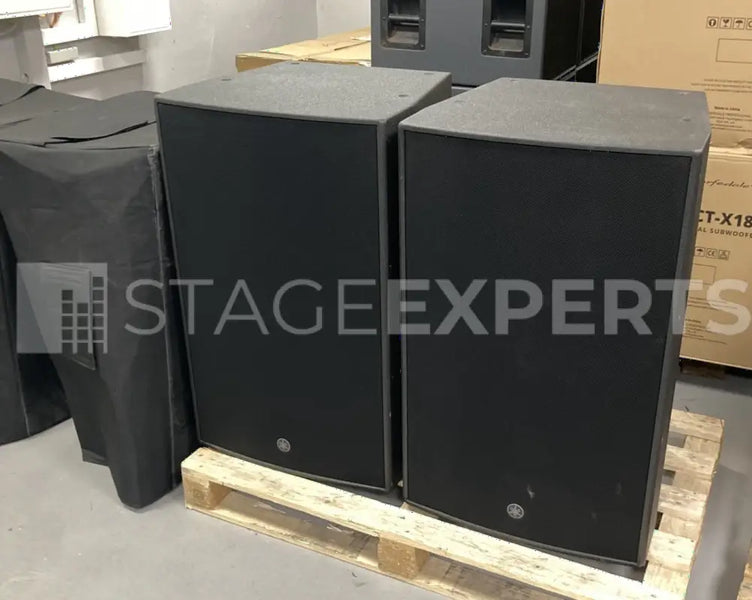

The Yamaha DZR315 is a high-performance 3‑way, bi‑amped active PA loudspeaker designed for touring-grade output and clarity. Delivering up to 143 dB SPL with a wide 31 Hz–20 kHz frequency range, it combines a 15-inch neodymium LF driver, 8-inch MF driver and a titanium-diaphragm HF compression driver for exceptional headroom and detail. Onboard 96 kHz DSP with FIR-X tuning ensures phase-coherent crossover and precise voicing, while the 75° x 50° dispersion provides focused coverage. Connectivity is flexible with dual combo inputs and XLR thru/DSP out, plus USB for preset storage. A robust, fan-cooled Class-D amplifier, V-Lock IEC mains inlet and multiple M10 rigging points make it ready for both portable and installed use. Dimensions: 550 x 897 x 520 mm; weight: 41.6 kg. Supplied with a protective cover. This listing is for one DZR315 loudspeaker including cover. Ideal for live sound, rental, install, corporate and DJ applications where maximum output and fidelity are essential.
Includes
- Protective cover
- Cover
