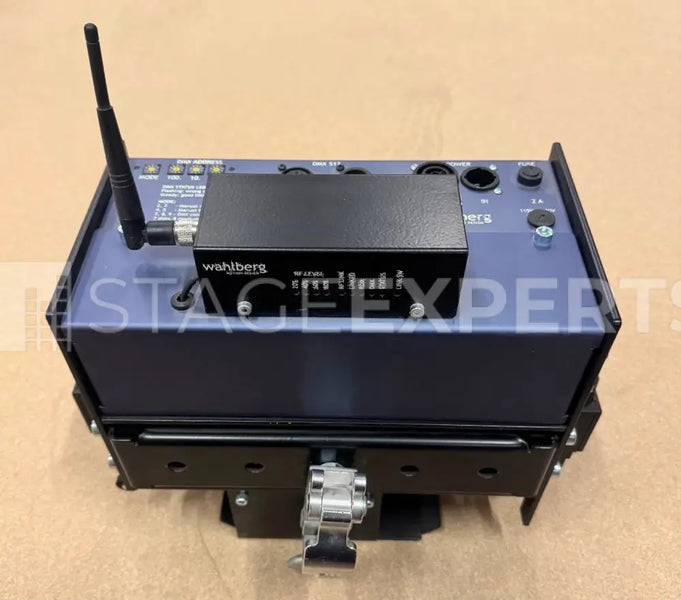

The Wahlberg Track Runner with Friction Wheel Set is a complete DMX-controllable track system for smooth, horizontal movement of scenic elements and fixtures. This pre-configured set includes track profiles, fast friction-wheel runners, passive runners and accessories to create a reliable, cable-managed motion track on stage. Control is via 6 DMX channels, with both wired DMX512A and built-in 2.4 GHz CRMX wireless options. Power is via Neutrik powerCON TRUE1, supporting 115/230 V AC, 50–60 Hz.
Performance is refined for professional use: rated load per passive runner up to 100 kg, typical noise around 50 dB at 1 m, and two motor speed variants are supported (fast: approx. 7.3–42 cm/s, slow: approx. 4–23 cm/s) depending on load and configuration. The integrated current and data path along the track enables cable-free movement of compatible electrical devices such as luminaires.
Ideal for theatre, live events, exhibitions and broadcast studios needing clean, repeatable linear motion for scenic pieces, props or moving lights.
Includes
- 4 × 3.0 m track profiles
- 1 × 2.0 m track profile
- 2 × Track Runner with friction wheel (fast version)
- 14 × Lightweight 4-wheel cable runners
- 1 × Endstop set (right/left)
- 15 × Slimcoupler brackets
- 8 × Connection brackets
- 4 × Passive runners (100 kg load)
- 1 × Mounting toolset
- 2 × 17 mm spanners
- 1 × 5 mm short hex key
STAGE22.7.100.500
