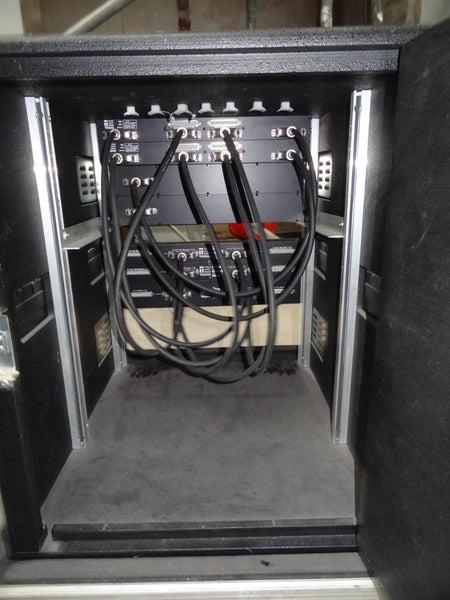

Used TEQSAS/Padco 20‑channel passive splitter system, ideal for touring, theatre and events where robust, transformerless splitting is required. This modular rig provides primary and secondary outputs and is configured with dedicated send and output panels for tidy, reliable patching. The input of each channel can be switched between its local XLR or the corresponding multicore line, giving flexible workflow options at stage or rack. Connectivity is handled via D‑Sub links between panels and splitter modules, with additional tie lines for utility signals. Supplied with MC12 looms, a console breakout and a protective flight case for transport and storage. Note: stageboxes are not included. Overall, a dependable, rider‑friendly analogue split solution for sending the same mic lines to FOH, monitors or recording without fuss.
Includes
- 2 x TX104 splitter modules
- 2 x MBLS MC12 send panels with D‑Sub to splitter input
- 2 x TVXLR panels for primary and first secondary output on TV patch strip
- 1 x H212 panel
- 2 x MC12 secondary out panels with 4 tie lines and 2 x D‑Sub to splitter module
- 2 x MC12 10 m multicore cables
- 1 x MC12 XLR male console breakout
- 1 x flight case
