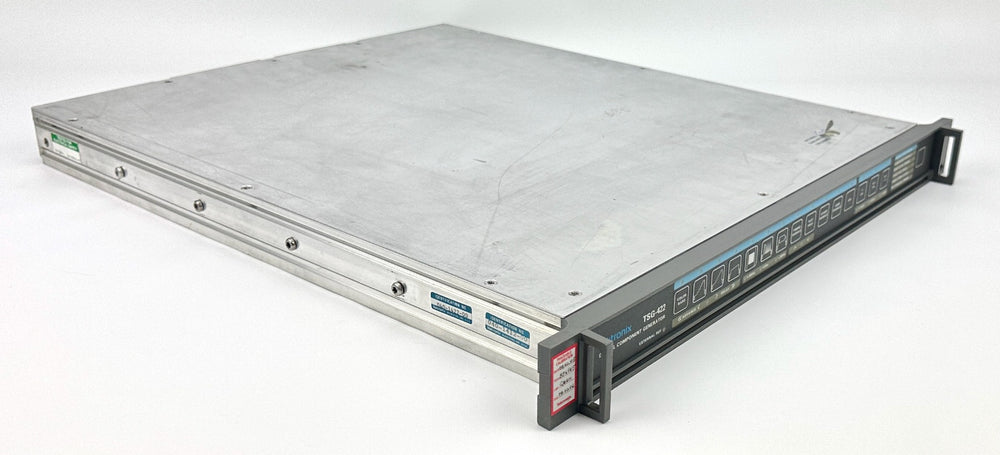

The Tektronix TSG-422 is a professional digital component test signal generator designed for maintaining, aligning and evaluating 4:2:2 video systems. Conforming to CCIR 601, SMPTE RP 125 and EBU Tech 3246-E, it produces stable 10‑bit test signals at 13.5 MHz for luminance and 6.75 MHz for colour difference channels. It supports both 525/60 and 625/50 operation with genlock capability, and provides NTSC or PAL black burst outputs for reliable system synchronisation. Separate Y, B‑Y and R‑Y clock outputs make integration into complex test setups straightforward.
This used unit is in good working order and is well suited to broadcast facilities, engineering benches, post‑production suites and OB operations that require dependable reference signals for SD component workflows. With robust standards compliance and flexible timing options, the TSG‑422 helps ensure consistent signal quality during setup, troubleshooting and routine maintenance.
Includes
- Tektronix TSG-422 Used Digital Component Generator
STAGE22.5.100.50
