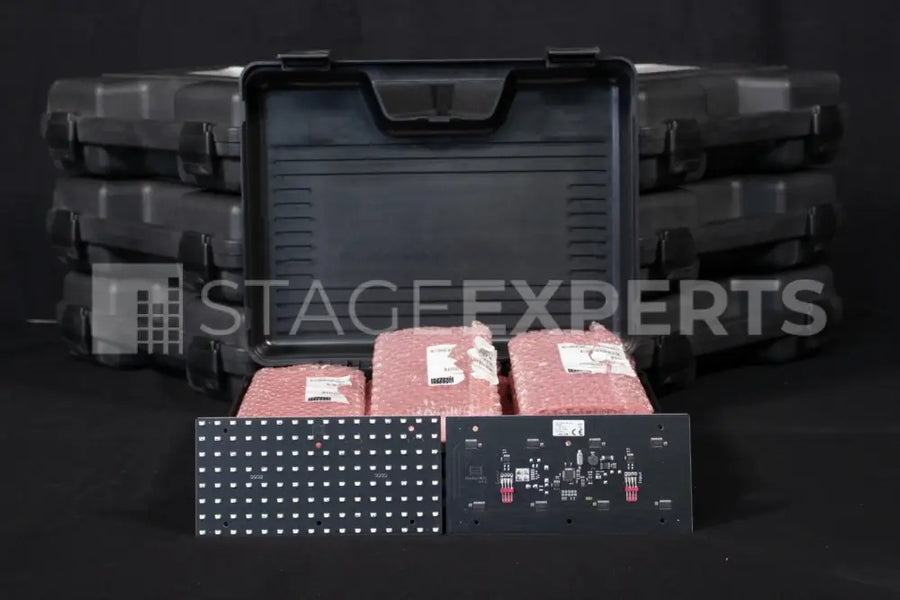

Comprehensive LED display bundle featuring 3 x Schnick Schnack Systems System Power Supply 4E with M12 LED tiles and accessories. Designed for professional installations and shows, the 4E supplies power and control data to C-series single-pixel and B-series RGB components, and it supports Art-Net and DMX512 for broad compatibility with lighting consoles and media servers. Generation 3 DPB (Dynamic Pixel Bus) enables higher channel counts per output (up to 3,072 channels), while an integrated HTML5 web server allows full remote configuration. Smart Link simplifies addressing at the PSU, and built-in test and colour programmes aid quick commissioning without a DMX source. The included M12 monochrome tiles (6500K, Ra>80) provide a 12.5 mm pixel pitch, 200 x 100 mm tile size, ultra-smooth dimming down to 0.01%, and a 46 kHz refresh rate for flicker-free performance with modern cameras. Supplied with XLR-4 distribution and long-run cabling, this set is ideal for creating crisp white pixel matrices, signage, or video-driven light surfaces in touring and fixed installs. Perfect for stages, exhibitions and architectural features.
Includes
- 120 x M12 LED tiles, 6500K
- 120 x patch cables
- 3 x System Power Supply 4E
- 3 x IEC mains leads for 4E PSUs
- 10 x 4‑pin XLR adapter boards with housings
- 10 x 4‑pin XLR cables, 20 m
- 500 x PCB holders with countersunk bore
STAGE22.2.100.250
