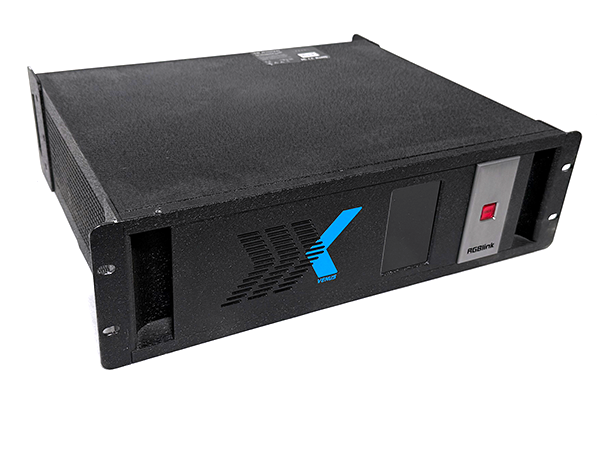

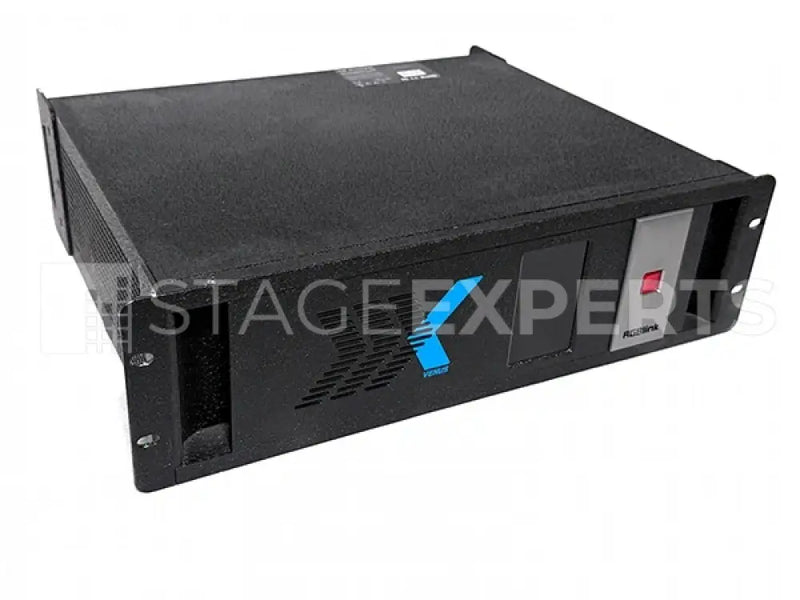

RGBlink X3 is a scalable, modular videowall processor designed for modern multi‑display environments. Part of the RGBlink Universal Processor range, it combines high‑performance scaling with seamless switching, allowing one or more video sources to be shown across up to eight outputs. Four input slots support up to sixteen inputs, while two output slots provide up to eight outputs, all via interchangeable RGBlink SmartSlot modules including 3G‑SDI, HDMI, DVI, DisplayPort, Composite, H.264 and USB Media. Multiple X3 units can be cascaded to drive very large display arrays, with a dedicated high‑speed video/graphics bus maintaining real‑time performance regardless of signal type or load.
Operational modes include Videowall, Presentation, Matrix and 3D, giving flexibility from control rooms and retail façades to corporate venues and live events. Configuration and control are straightforward using RGBlink XPOSE software or T Series control consoles. For 4K workflows, the optional 12G‑SDI input module supports switchable 2SI and SQD encoding for safe, reliable signal processing. Choose X3 when you need modular connectivity, reliable scaling and cohesive control for professional multi‑screen applications.
Includes
- RGBlink | X3
