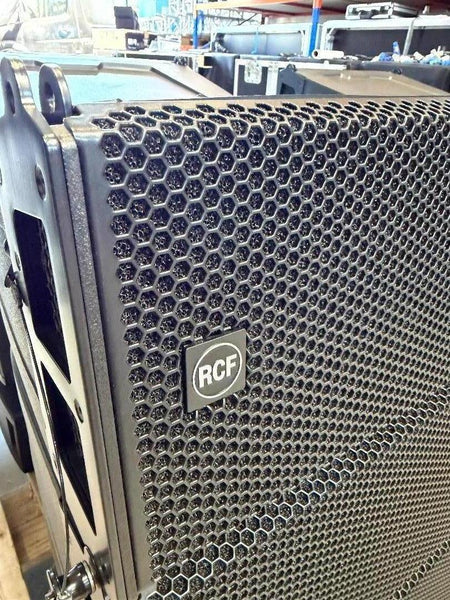

The RCF HDL 6A is a compact active 2-way line array module built for clear, articulate speech and musical detail in both portable and installed systems. It features dual 6-inch RCF woofers with 2.0-inch voice coils and a 1-inch compression driver with a 1.75-inch voice coil, driven by a digital bi-amped amplifier with onboard DSP. Delivering up to 1400 W peak (700 W RMS) and a maximum SPL of 131 dB, it offers consistent 100° x 10° coverage per cabinet with adjustable splay angles from 0° to 10° in 2° steps for precise array configuration. The frequency response spans 65 Hz to 20 kHz (±3 dB), ensuring an even, controlled sound field. Compact and lightweight at 11.5 kg, the cabinet measures 237 x 470 x 377 mm for easy rigging and transport. This unit is in excellent condition and is supplied with a rain cover for added weather protection. Ideal for speech reinforcement, corporate events and light live music, and perfect for scalable array deployments.
Includes
- Rain cover
- Cover
