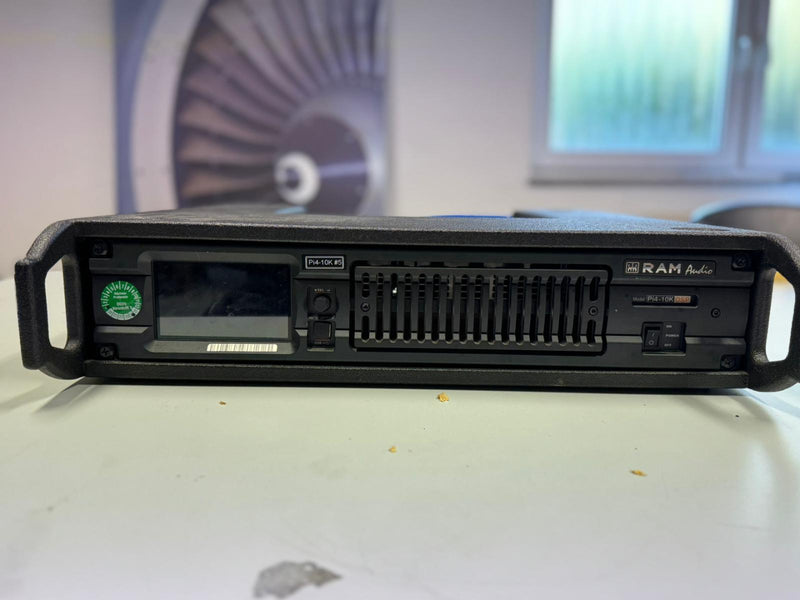

The RAM Audio Pi4-10K AES3 is a four-channel, 10 kW system amplifier engineered for demanding touring and installation work. Delivering up to 4 x 2500 W at 2/4 ohms, 4 x 1600 W at 8 ohms, or 2 x 5000 W bridged, it also supports 70 V and 100 V high‑Z operation for flexible deployment. Its QuantaPulse switch‑mode power supply and advanced Class‑H 3‑step topology provide exceptional headroom, punch and efficiency, even with asymmetric loads.
A powerful 64‑bit FIR‑capable DSP with 96 kHz/24‑bit converters ensures precise system control, while AES3 digital inputs (any sample rate) keep signals pristine. The 4.3" IPS capacitive touchscreen offers intuitive access to presets, user EQ, snapshots and all amplifier parameters. Dual‑port Ethernet enables daisy‑chain networking, and USB supports firmware updates and offline DSP management. Comprehensive protection via RAM Audio’s PMS, plus ICL, SSP, soft‑start and thermal safeguards, keeps systems safe under real‑world conditions. Housed in a compact 2U, 19" chassis and weighing just 8.5 kg, it’s built for efficient racks and reliable daily use.
Ideal for driving line arrays, point‑source systems and subs in live sound and fixed installations.
Includes
- RAM Audio Pi4-10K AES3 DSP Power Amplifier 4 x 2500 W
