The Prolyte MPT1210 Roof is a professional, tower-based stage roof system built around proven Prolyte H30D, H30V and H40V truss. Supplied in a 12 × 10 m configuration with 7.5 m tower height, it offers a uniform roof load of around 3,950 kg and is engineered for reliable outdoor performance. Thanks to its modular design, the system can also be configured as 10 × 8 m or 8 × 6 m using the included components, with grey roof tarpaulins for each size. The package features four Chain Master 1 t D8 hoists with 24 m chains and a 6-way controller in a case, rigging steels and tensioning gear, 16 IBC water tanks for ballast, and a 3-sided 6 m black scrim on a rail system for the 12 × 10 m setup. A comprehensive set of underlay plates and truss dollies supports safe build and transport. A valid structural logbook is present; re-certification/inspection will be required before use. Ideal for festivals, concerts and outdoor events where scalable, robust roof coverage is essential.
Includes
- Full truss set for 12 × 10 m roof (H30D/H30V/H40V) with specials
- Truss dollies
- 2 cases with 16 long outriggers
- 4 × Chain Master 1 t D8 hoists with 24 m chains
- 6-way hoist controller in case

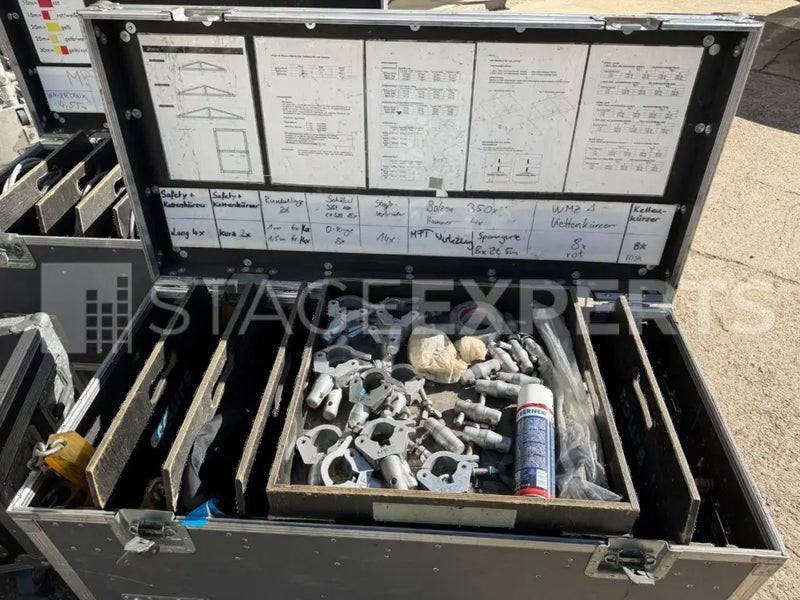

- Rigging and tensioning steels in 2 cases
- 16 × IBC water tanks (1000 l) for ballast
- Grey roof tarpaulins for 12 × 10 m, 10 × 8 m and 8 × 6 m (Auer boxes)
- 3-sided black scrim, 6 m high on rail (Auer box)
- 32 × double rubberised underlay plates, 30 × 30 cm
- Structural logbook (re-approval required)
