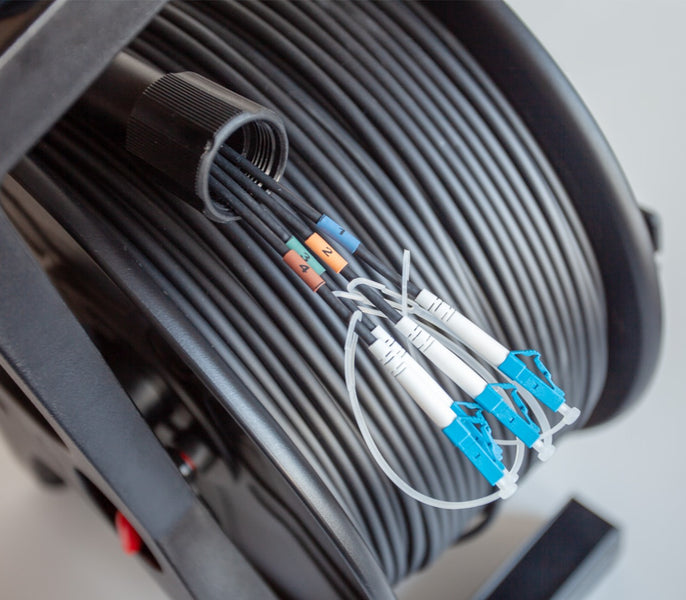

The Panzerkabel LWL Pro 4x LC SM 200m is a rugged, armoured fibre optic assembly built for demanding mobile workflows. Using OS2 9/125 µm single-mode fibre within a steel armoured construction and tough PUR outer jacket, it delivers high bandwidth with minimal attenuation while withstanding crushing, impacts and even vehicle overrun. The 5 mm cable remains highly flexible for repeated deployment, with an approximate 50 mm minimum bend radius to preserve performance in the field. Aramid fibre reinforcement provides strong tensile strength for confident pulls over distance, and the discreet black jacket blends into stage and broadcast environments. Removable protective sleeves with an integrated pulling aid safeguard the LC connectors and speed both setup and strike. Supplied on a Schill drum for neat handling and storage, each cable is RoHS compliant and includes an individual test report for assurance. Connector set: 4 x LC to 4 x LC, total length 200 m plus a 5 m auxiliary winding. Ideal for touring, live events, broadcast, military and industrial use.
Includes
- Schill cable drum
- Protective LC connector sleeves with pulling aid
- Individual test report
STAGE22.8.100.05
