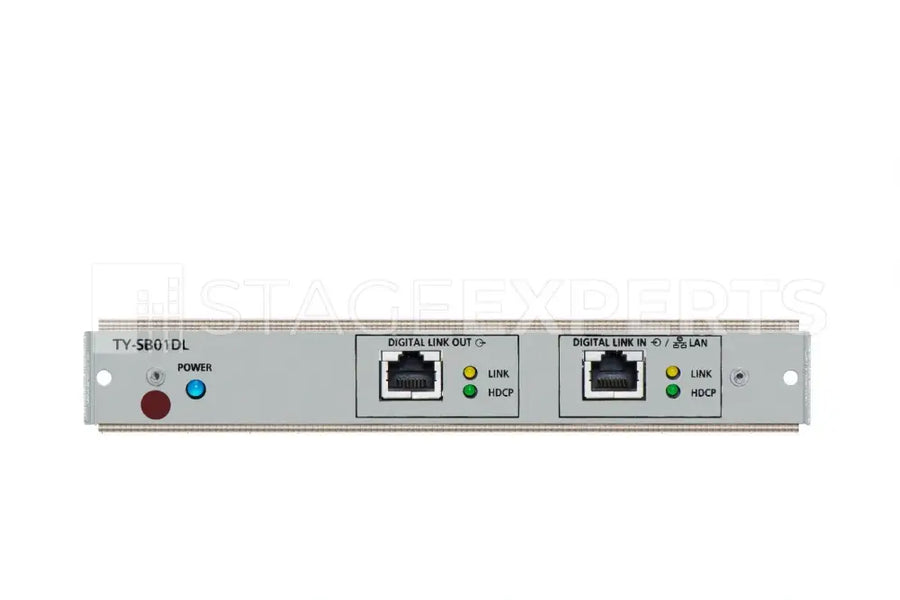

The Panasonic TY-SB01DL is a DIGITAL LINK receiver board designed for compatible Panasonic displays and projectors with an Intel SDM slot. This sample/demo unit is in as-new condition and enables long-distance AV signal transmission over a single CAT cable, simplifying installation and reducing cabling complexity. Featuring RJ45 DIGITAL LINK input and output with HDCP 2.2 support, it handles motion video up to 4096 x 2160 and still images up to 3840 x 2400 (non-interlaced). In long-reach mode, it supports up to 150 m at 1080/60p (4:4:4 24-bit), 100 m at 1080/60p (4:4:4 36-bit), and 50 m at 4K/60p (4:2:0). Compact and lightweight, it fits seamlessly within the host display or projector for a clean, professional integration. Please note: this board is not standalone and must be installed in a compatible Panasonic model. Ideal for professional AV environments requiring reliable, high-quality video extension over structured cabling in corporate, education, and live event applications.
Includes
- Operating instructions
