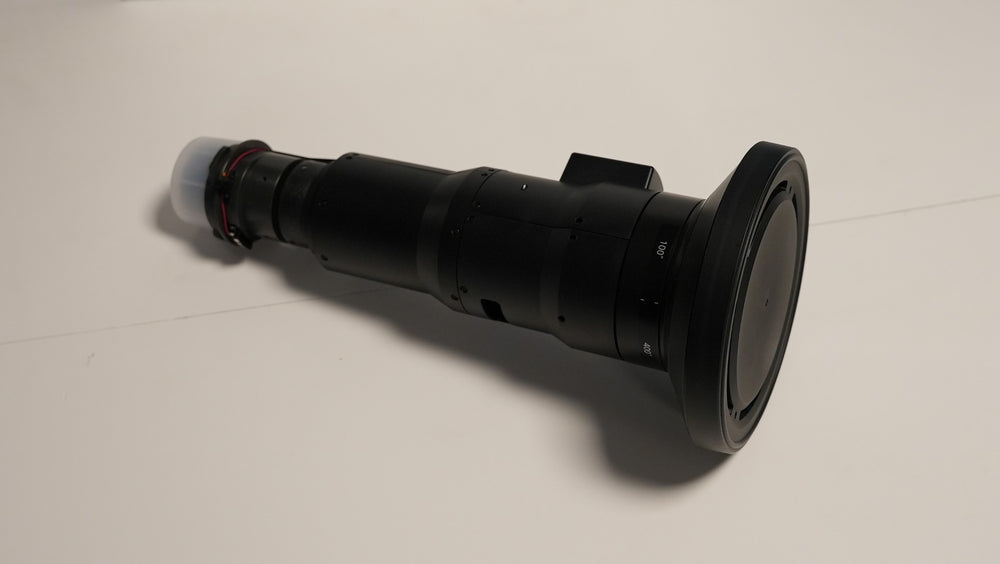

The Panasonic ET-DLE020 is an ultra-short-throw zoom lens designed to simplify installation where space is limited and precision is crucial. Delivering a throw ratio of approximately 0.280–0.299:1 with zero image offset, it enables large images from a minimal projection distance. The integrated optical zoom provides an installation margin of ±45 mm, allowing quick, accurate framing without repositioning the projector. When paired with compatible Panasonic laser projectors, the lens supports wide-range vertical and horizontal lens shift, more than doubling the adjustable area compared with comparable lenses to maximise placement flexibility.
With an F value of 2.0 and a 4.1–4.4 mm focal length, the ET-DLE020 maintains excellent image clarity while accommodating tricky throw constraints in retail, museums, corporate spaces and rental staging. The lens measures 170 × 170 × 391 mm and weighs approximately 3.2 kg. Compatible models include PT-RCQ10/RCQ80/RZ990/RZ890/RZ790/RZ690/RZ120/RZ970/RW930/RX110/RZ870/RZ770/RW730/RZ660/RW620.
Ideal for edge-to-edge visuals in tight venues, interactive exhibits, and immersive environments where fast, precise setup and consistent image geometry are essential.
Includes
- Panasonic ET-DLE020
