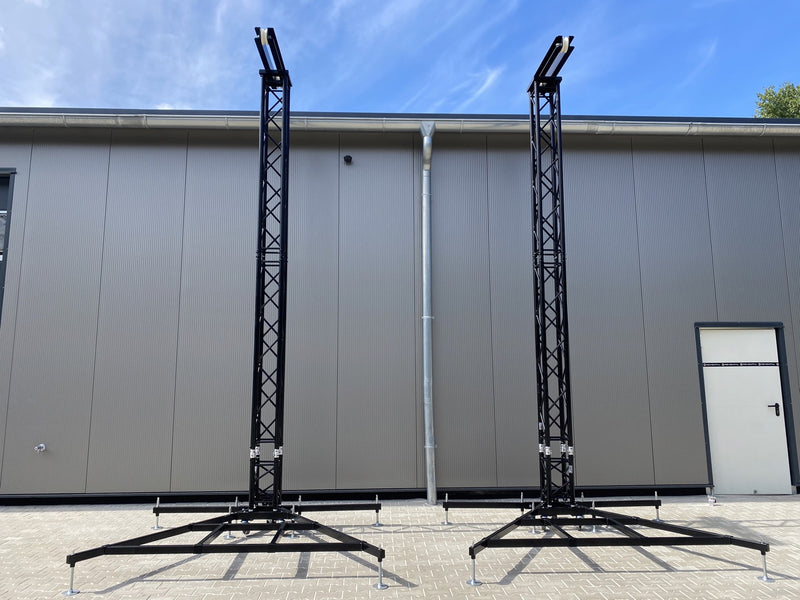

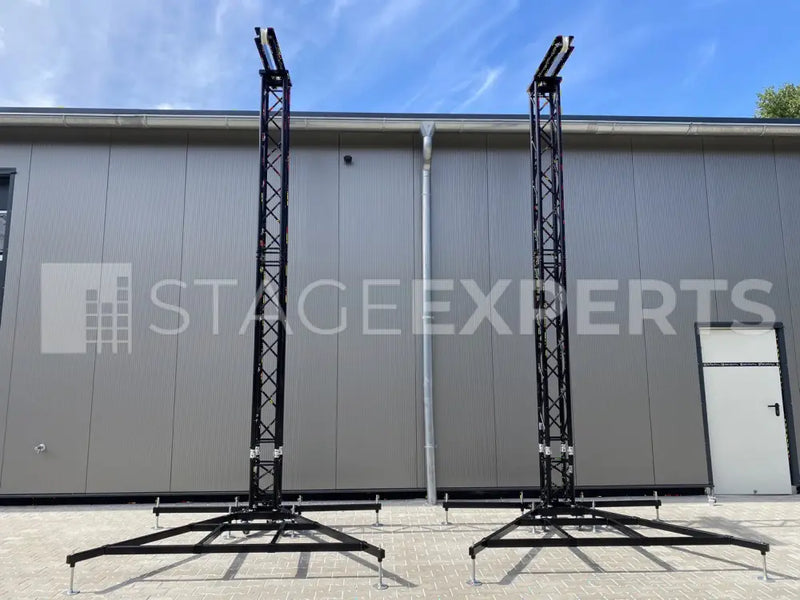

This complete PA Tower set provides a robust ground-support solution for line array deployment. Designed for a working height of up to 5 m with a 300 kg load capacity, it features a reinforced base with long front outriggers for stability and a forward-reaching head section that acts as a load arm. Line array loudspeakers can be raised using a motorised or manual chain hoist via integrated deflection pulleys. Indoors, a line array weight above 80 kg generally requires no ballast; outdoors, suitable ballast is required and is commonly achieved by positioning subwoofers on the base. The set includes HD F34 truss sections in black (RAL 9005), a matching head section, a basement with outriggers, and a set of four tower joints. Static calculations are available on request, and compatible Chainmaster motors or manual chain hoists can be specified. A transport solution can also be provided to suit your workflow. Ideal for touring, festivals and fixed installs where safe, repeatable line array lifting is essential.
Includes
- 2 x F34 HD3 200 cm 4-point truss, RAL 9005 black
- 1 x F34 HD3 50 cm 4-point truss, RAL 9005 black
- PA Tower head section with deflection pulleys, RAL 9005 black
- PA Tower basement with outriggers, RAL 9005 black
- Set of four tower joints, silver
STAGE22.2.100.290
