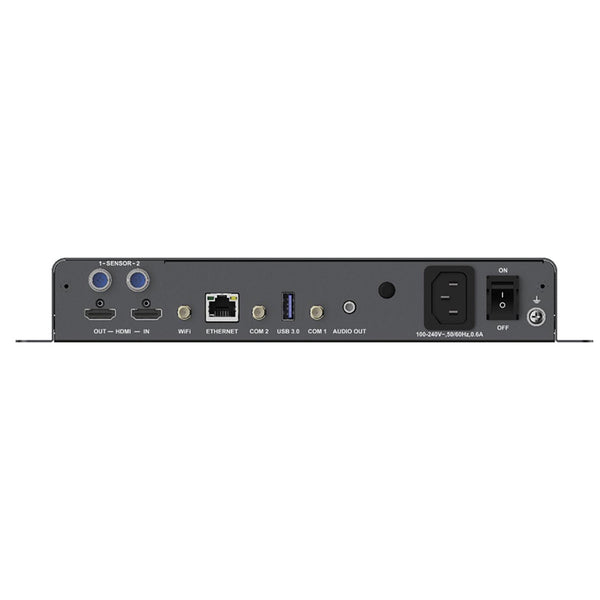

The NovaStar TB60 is a compact all-in-one media player and LED sending controller with an integrated scaler, built for dependable professional display control. It drives LED walls directly via four Gigabit Ethernet outputs, supporting up to 650,000 pixels per port with a maximum dimension of 4096 in width or height. Connectivity is comprehensive: Wi‑Fi (client or access point), HDMI 1.4 input, HDMI 1.4 output/loop at 1080p60, stereo audio out and USB 3.0 for rapid media import and firmware updates. A quad‑core ARM A55 1.8 GHz processor with 1 GB RAM and 16 GB internal storage ensures responsive operation and smooth playback.
Integration is straightforward using ViPlex Express and NovaLCT, while two sensor ports support peripherals such as the NovaStar NS060 light sensor. For multi-screen deployments, the TB60 enables synchronised playback across multiple units via NTP or GPS time (GPS via optional NovaStar 4G module). Whether you are building fixed installations, retail signage networks, corporate displays or touring LED walls, the TB60 delivers reliable, streamlined control in a single box.
Includes
- Controller
STAGE22.6.100.60
