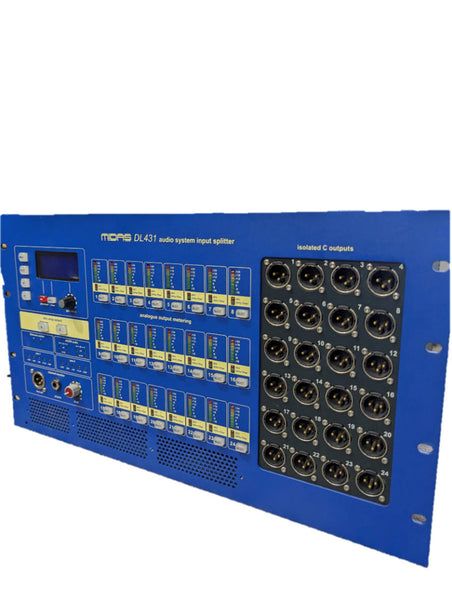

The MIDAS DL431 is a professional 24‑channel active microphone splitter designed for demanding live sound, touring, broadcast and recording workflows. Each of the 24 balanced XLR mic/line inputs features independent MIDAS preamps, allowing FOH, monitors and recording to share the same sources without gain conflicts. Two preamp paths per channel provide individually adjustable gain in 2.5 dB steps from -2.5 dB to +45 dB, while a third analogue split is transformer‑isolated at fixed -6 dB for maximum interoperability and noise rejection. Channel facilities include switchable 48 V phantom power and a 30 Hz high‑pass filter, with clear 7‑segment metering across all inputs for instant visual feedback. For digital integration, the DL431 offers AES50 connectivity with 24 channels, supporting redundant networking within MIDAS PRO and XL8 systems. Operational confidence is enhanced by dual redundant internal PSUs, plus local monitoring via headphone and balanced XLR monitor outputs. Housed in a rugged 6U rack chassis, this used unit shows typical cosmetic wear consistent with professional rental use.
Ideal for large‑scale touring rigs, theatre, broadcast trucks and rental inventories where robust, independent multi‑split workflows are essential.
Includes
- MIDAS DL431 – 24-channel active microphone splitter – used
STAGE22.2.100.460
