The MIDAS DL152 is a professional 24‑channel AES50 output stagebox designed for seamless expansion of MIDAS and AES50‑compatible digital audio systems. It provides 24 electronically balanced line‑level outputs on 3‑pin XLR, delivering low output impedance, high drive capability and reliable performance over longer analogue cable runs. Dual Neutrik etherCON ports enable redundant AES50 networking for added peace of mind in live, touring, theatre and installed rigs. Operating at 48 kHz or 96 kHz, the DL152 integrates smoothly with MIDAS PRO Series and M32 workflows. Configuration is straightforward via the clear front‑panel LCD or remotely from the connected console, with status LEDs for network, AES50 link and power. Housed in a rugged 2U 19‑inch steel chassis, it is ready for life on the road and easy to rackmount. Key audio specs include 24‑bit conversion at up to 96 kHz, >107 dB dynamic range, +21 dBu max output level, 50 Ω source impedance and a flat 20 Hz–20 kHz response. This is used professional equipment and may show cosmetic signs of use. Ideal for expanding output capacity in reliable, tour‑grade systems.
Includes

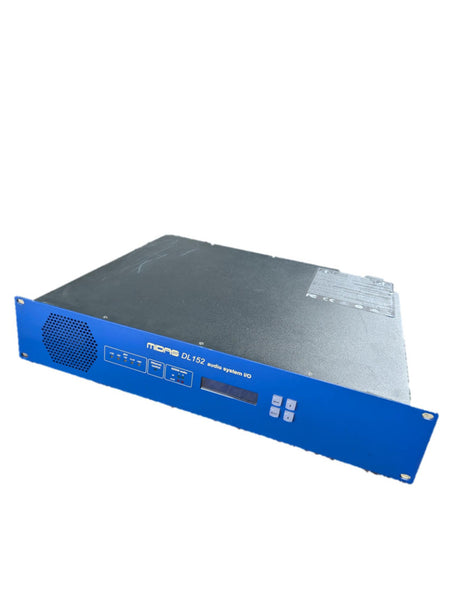

- MIDAS DL152 – 24-channel AES50 output stagebox – used
STAGE22.6.100.60
