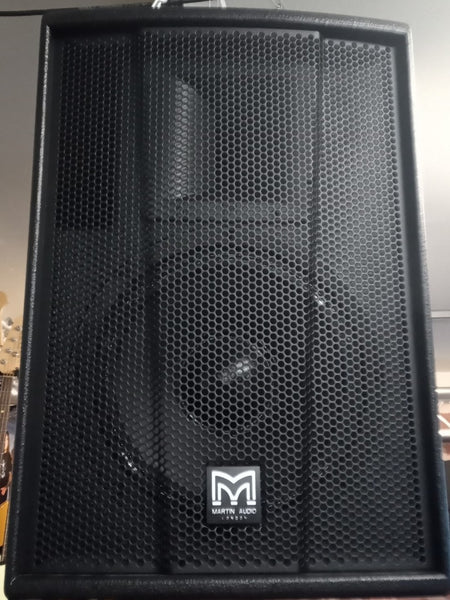

The Martin Audio F10+ is a compact passive two‑way loudspeaker supplied with the HTKF10Y yoke for fast, flexible mounting. A 10-inch LF driver pairs with a 1-inch HF compression driver on a rotatable 90° x 50° constant directivity horn, delivering clear, even coverage whether the cabinet is used vertically or horizontally. The multi‑angle enclosure supports stand mounting, discreet wedge monitoring or flown deployment via the included yoke. Engineering refinements such as a demodulating ring on the LF driver, an optimised water‑resistant cone and a carefully tuned passive crossover provide low distortion, smooth response and consistent directivity.
With 300W AES (1200W peak) power handling, 96dB sensitivity and up to 127dB peak SPL, the F10+ offers impressive output from a small footprint. Its 65Hz–20kHz (±3dB) bandwidth and 2.5kHz crossover ensure articulate vocals and musical detail, while the 8‑ohm nominal impedance makes amplifier matching straightforward. A robust, versatile choice for portable PA, installs, front or side fills, and clear on‑stage monitoring.
Includes
- HTKF10Y yoke
STAGE22.7.100.14
