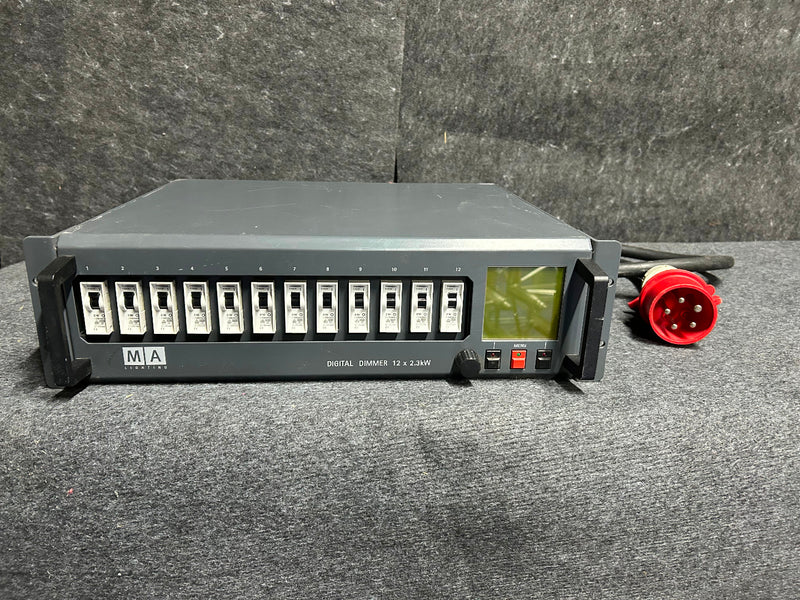

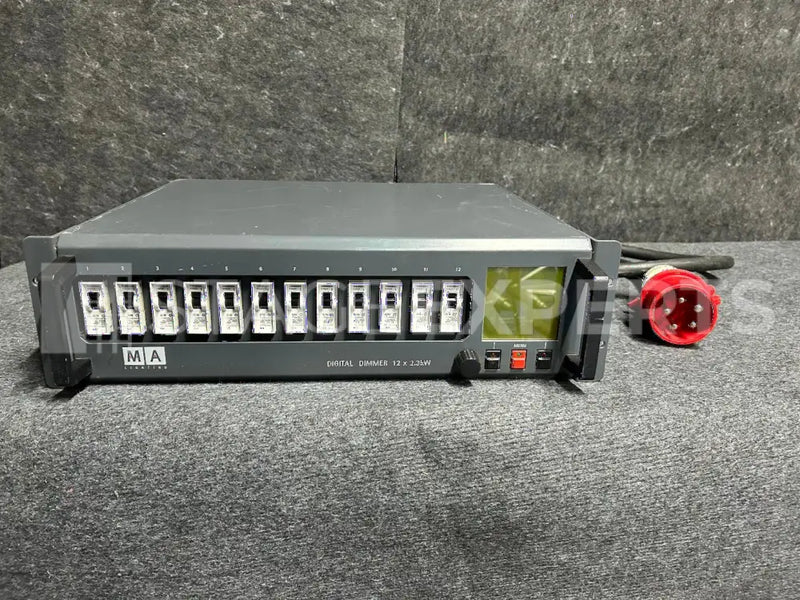

The MA Lighting Digital Dimmer 12x2.3kW delivers precise, reliable control for up to 12 channels at 2.3 kW per channel, ideal for demanding professional lighting rigs. Built into a rugged 19-inch, 3U steel chassis with an internal frame, it’s engineered for touring and fixed installations alike. Control is flexible with DMX512, MIDI and master–slave modes, while an illuminated LCD provides quick, clear navigation and status feedback. Electronic fan control maintains efficient, quiet cooling, and integrated surge protection with per‑channel circuit breakers enhances safety and resilience. Programmable phase correction optimises power quality, especially useful with mixed loads and varied fixtures. Connectivity is streamlined via two Harting multipin outputs for fast, tidy patching. Operating at 230 V, 50 Hz across one to three phases with a 63 A supply, it offers the versatility needed in theatres, live events and venues where dependable dimming is essential. Dimensions are 483 x 132 x 510 mm (19" x 3U) and weight is 30 kg. A robust, high‑capacity dimmer for stage productions, touring systems and corporate environments.
Includes
- MA Lighting Digital Dimmer 12x2.3kW, 12-Channel Rack Unit
STAGE22.6.100.00
