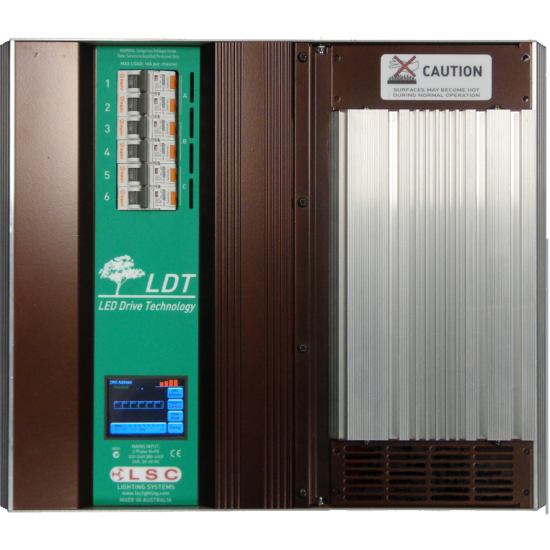

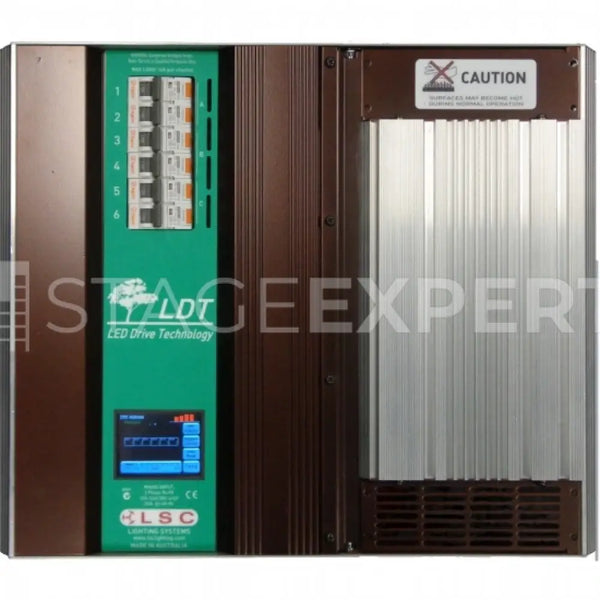

The LSC LDT6 is a professional 6-channel LED driver dimmer designed for modern venues and retrofit projects seeking reliable, theatre-grade control. Each channel is rated to 10A and protected by an individual 6kA thermal‑magnetic MCB, while LSC’s patented LED Drive Technology delivers stable, flicker‑free performance with dimmable LED loads. Control is comprehensive: DMX512/DMX512‑A and RDM are provided via screw terminals, with wall plate control over RJ45 and a dedicated panic input for safety integration. The unit operates on 220–240 V AC in either single‑phase or 3‑phase star (380–415 V), 45–65 Hz. Robust termination is provided per circuit, with grouped neutrals and earths to keep wiring neat and compliant. For all‑LED rigs, LSC recommends limiting RMS current to 3A per channel to manage inrush. Built in an aluminium chassis with steel panels, the LDT6 mounts via keyhole slots and is supplied with a mounting template for straightforward installation. Optional 3‑phase RCD protection is available on 6 and 12‑channel models. Ideal for theatres, live venues, education and houses of worship needing dependable, precise LED dimming.
Includes
- Mounting template
STAGE22.1.100.300
