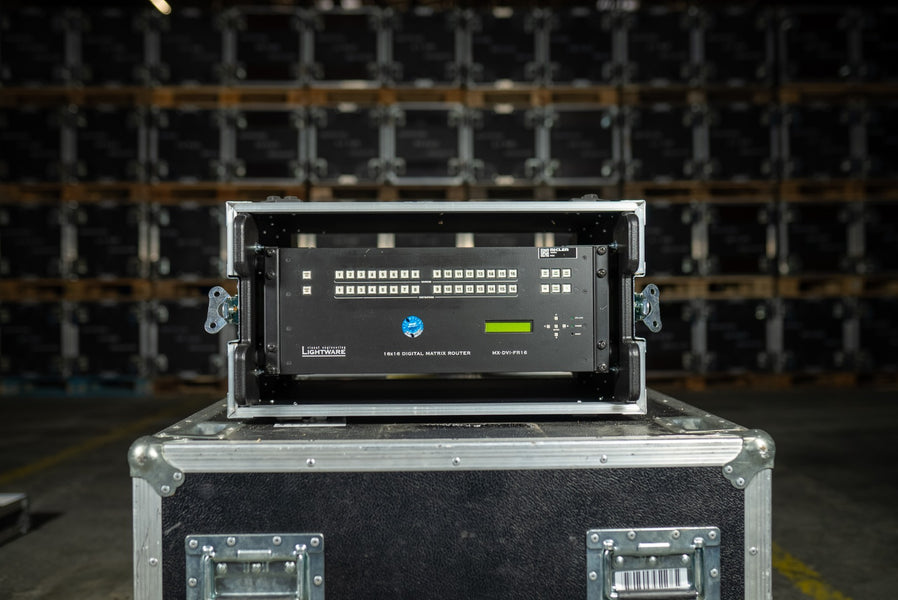

The Lightware Matrix MX 16×16 DVI‑HDCP Pro is a high‑performance, modular matrix switcher for professional AV. Compatible with DVI 1.0 and HDMI 1.3 signals (via appropriate adaptors), it routes up to 16 inputs to 16 outputs with rock‑solid reliability. Advanced EDID management is built in, offering 50 factory presets and 50 user‑programmable slots, plus 256‑byte extended EDID v1.3 emulation to ensure fast, trouble‑free handshakes across complex systems.
Operational control is straightforward via the front‑panel buttons and LCD, while integration is easy with RS‑232/422 (9600 baud) and 10/100 Ethernet. Designed for mission‑critical environments, it features forced‑air cooling with dual 119 mm fans, low typical power draw (around 12 W), and compliance with EN 55022 Class B and RoHS. The rugged chassis is rack‑friendly and supplied with a protective flight case for safe transport between venues.
Ideal for corporate presentation suites, live events, higher education, and control rooms, the MX 16×16 DVI‑HDCP Pro delivers dependable signal routing where consistency and uptime matter.
Includes
- Flight case
STAGE22.2.100.000
