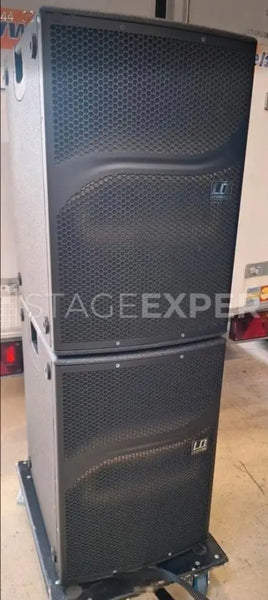

The LD Systems DDQ SUB 212 is a high-performance active subwoofer engineered for precise, impactful low-frequency reinforcement in professional PA systems. Its bandpass enclosure houses two custom 12-inch neodymium drivers with 3-inch voice coils, powered by efficient Class D amplification delivering 1400 W RMS (2 x 700 W). Onboard DSP with look-ahead limiting and comprehensive protection ensures clean, consistent output and long-term reliability, even at high levels up to 132 dB peak SPL. Integration is fast and flexible thanks to selectable crossover points (80–120 Hz), four cardioid presets for controlled stage spill, and a dedicated 100 Hz high-pass Sat Out for tops. Connectivity includes balanced XLR inputs with link outputs, while practical controls cover gain, DSP enable/disable and ground lift, supported by clear status LEDs. Built from 18 mm plywood with a tough polyurea coating, it features twin M20 threaded pole mounts and multiple handles for easy deployment. Ideal for live sound, rental fleets and fixed installs needing tight, controlled bass.
Includes
- LD Systems DDQ SUB 212 Powered Subwoofer, 1400 W RMS
