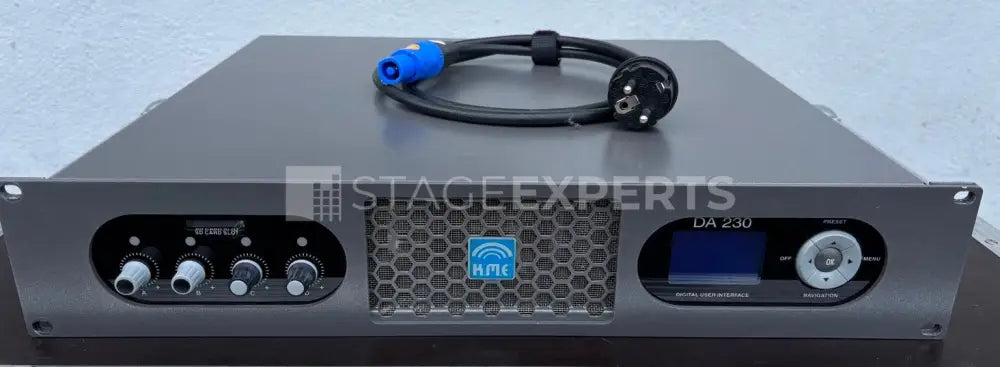

The KME DA230 is a compact 2U, two‑channel Class‑D system amplifier delivering 2 x 1500 W at 4 ohms (700 W at 8 ohms), ideal for touring and fixed installs. Its integrated DSP offers precise loudspeaker management with adjustable gain, crossover options, subsonic filtering, parametric EQs, dynamics, polarity and delay, plus a flexible matrix router. You can store up to 12 internal presets and expand via SD card for fast and consistent deployment across multiple venues. Connectivity covers dual balanced XLR analogue inputs with link outs, along with AES/EBU and S/PDIF digital inputs featuring format and sample‑rate conversion up to 192 kHz. Two Speakon NL4 outputs manage loudspeaker connections, with mains via PowerCon. A clear LCD, four push‑encoders, RGB status LEDs and a ground‑free switch streamline setup, while stereo, mono and freely routable 2‑channel modes support varied system topologies. With wideband response, excellent S/N ratio, high damping factor and comprehensive protection, the DA230 is a dependable choice for full‑range tops, monitors and subs in professional PA systems.
Includes
- KME DA230 System Amplifier – 2x1500W @ 4Ω, 2‑Ch DSP
