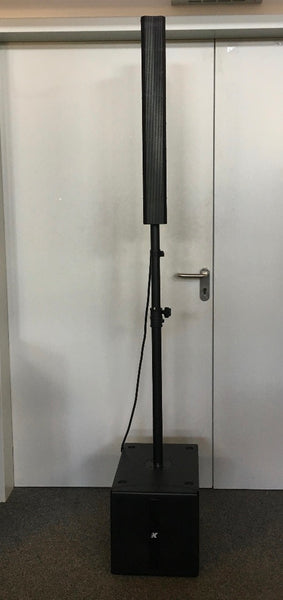

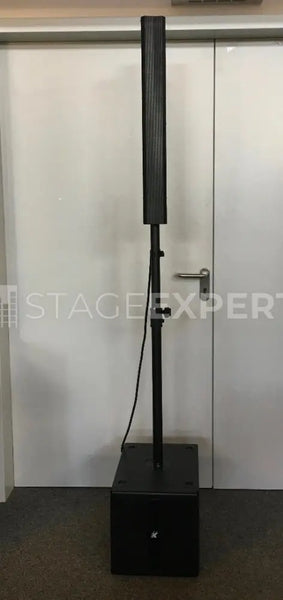

K-array’s BlueLine KB1 is a compact, active column PA designed for articulate speech and musical clarity in a highly portable footprint. This mono system comprises one KB1-Sub with a 12-inch (305 mm) driver and one KB1-Top with eight 3-inch (76 mm) transducers, delivering full-range performance from 30 Hz to 20 kHz. A built-in 4-channel digital mixer and multi‑effects engine with 16 presets streamline setup, while PC/Mac software control provides quick access to system parameters. The digitally steerable vertical coverage from 10° to 60° and a 90° horizontal spread ensure precise audience coverage with minimal spill. DSP-managed processing includes a 200 Hz crossover, class‑D amplification rated at 2 x 120 W for mids/highs and 450 W for the subwoofer, plus comprehensive protection with dynamic limiting, over‑voltage and thermal safeguards. With a maximum SPL of 112 dB continuous (118 dB peak), the KB1 suits corporate presentations, houses of worship, education spaces and small performance venues needing clarity, control and speed of deployment. Ideal for portable PA, presentations and live events where intelligibility and compact form factor are paramount.
Includes
- K-Arry Blue Line
STAGE22.7.100.99
