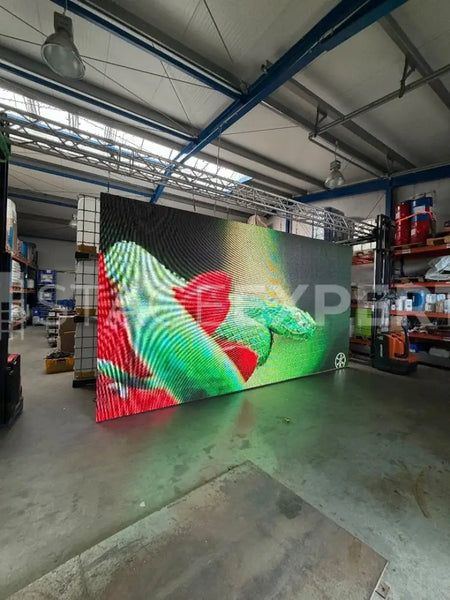

Used indoor LED video wall from individualLED with Linsn control, comprising 48 working cabinets totalling approximately 21 m². Each cabinet measures 730 x 610 mm with a resolution of 96 x 80 pixels and a 7.6 mm pixel pitch, ideal for viewing from around 7 m. The wall was removed from a fixed installation, test-assembled successfully, and is now palletised for forklift loading. Typical layouts include 9 x 4 cabinets (approx. 5.5 x 2.9 m, 720 x 384 px) or 12 x 4 cabinets (approx. 7.3 x 2.9 m, 960 x 384 px). Linsn RV902 receiving cards are fitted and the .RCG configuration file is supplied. Power is 200 W per cabinet (max approx. 9.6 kW for all 48). Steel frame construction, indoor use, circa 2012. Supplied with a sending card, a selection of network and PowerCON cabling for a test setup, plus spare frames, modules and receiving cards for parts. Truss and rigging hardware are not included; installation should be carried out by competent professionals. A robust package for venues seeking a cost-effective large-format indoor LED display.
Includes
- 48 working LED cabinets
- Linsn sending card with case, cables and adapter
- 31 x network cables
- 28 x PowerCON–PowerCON link cables
- 2 x 15 m PowerCON–PowerCON link cables
- PowerCON infeed leads: 1 x 1.5 m, 3 x 10 m, 1 x 20 m
- 1 x USB cable
- 1 x DVI cable
- 10 stripped cabinets/frames for spares
- 10 defective LED modules for parts
- 6 defective receiving cards for parts
