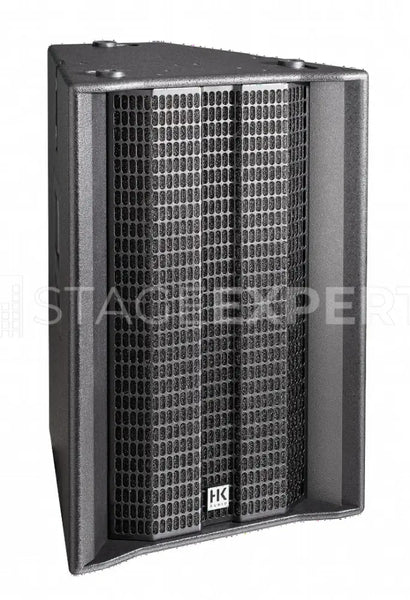

The HK Audio LINEAR 5 LTS is an ultra‑compact long‑throw PA top designed to project a powerful, even sound field over 30 metres and beyond. Its innovative Multicell Transformer (MCT) horn delivers a controlled 60° horizontal pattern with a vertical dispersion of +5°/‑25°, focusing energy where it’s needed and reducing spill. A trio of 8-inch neodymium woofers pairs with a 1-inch neodymium HF driver for articulate mids and crisp highs, supported by a passive crossover at 1.7 kHz. With 600 W RMS power handling (2400 W peak), up to 138 dB peak SPL (half‑space), and an 8‑ohm nominal impedance, it integrates easily into passive systems.
Practical deployment is built in: switchable NL4 pinning, MonoTilt top‑hat, seven M8 fly points and rugged birch plywood construction with a tough black acrylic finish. At 26.4 kg and 44 x 68 x 46 cm, it’s easy to handle yet touring‑ready. Frequency response is 108 Hz–14 kHz (±3 dB), extending 100 Hz–20 kHz (‑10 dB).
Ideal for small to mid‑scale live sound, corporate events and installations where fewer boxes, faster setups and long‑throw clarity are essential. Supplied with a 5‑year manufacturer’s warranty.
Includes
- HK Audio LINEAR 5 LTS PA Top Speaker with 5-Year Warranty
