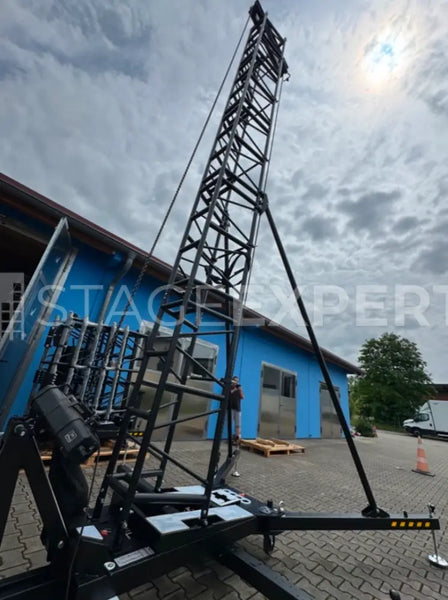

The GUIL TMD-570 is a heavy-duty PA rigging tower designed for rapid deployment and secure loudspeaker or truss lifting in indoor and outdoor environments. Offering a maximum overall height of 8.25 m and a working height of 8 m, it supports loads up to 800 kg, making it ideal for line array hangs and ground-support applications. Built from aluminium and steel with a durable black finish, the tower features a compact stowed height of 2.10 m, a base footprint of 94 x 187 cm, and an all-in-one volume of 3.68 m³ to streamline transport and storage. Typical setup time is around 15 minutes.
Safety and compliance are central: the TMD-570 meets EN 17206 (replacing DIN 56950-1), EN 13814, and DGUV 17 & 18 / DGUV 115-002, and is tested for outdoor use up to wind force 8 (Beaufort). Net weight is 360 kg including all components. Chain hoists are not included. Structural calculations can be provided on request.
A robust choice for touring, festivals, corporate events and installations where reliable, high-capacity PA lifting is required.
Includes
- GUIL GUIL TMD 570 PA Tower
STAGE22.1.100.4900
