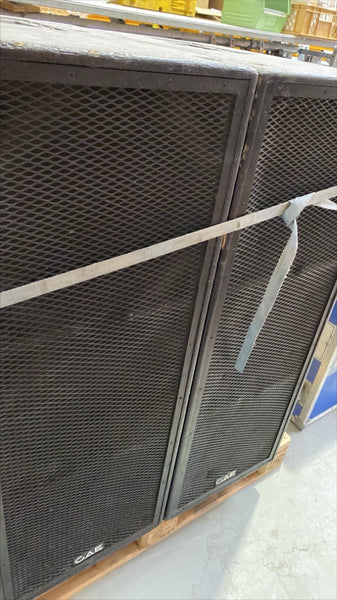

The GAE Director Top is a high-performance horn-loaded mid/high enclosure designed for precise coverage and powerful output. Its twin‑coaxial architecture teams two horn‑loaded 12-inch specialised midrange drivers with a horn‑loaded 1.5-inch neodymium compression driver, delivering outstanding clarity and controlled directivity. With a 60° x 40° constant‑directivity pattern, 108 dB sensitivity (1 W/1 m) and peak SPL beyond 138 dB, it provides authoritative throw and articulation for demanding sound reinforcement. Built for touring, the cabinet uses multi‑ply birch plywood finished in hard‑wearing black polyurethane, with a metal grille backed by acoustically transparent foam. Integrated MAN flying hardware, recessed handles and rear strap points aid safe rigging and aiming, while fitted transport wheels simplify load‑ins. The Director Top operates at 8 ohms with a frequency range of 120 Hz–18 kHz. Recommended input power is 750–1200 W at 8 Ω for the 12-inch section and 250–350 W at 8 Ω for the HF, with CA‑COM 8‑pin connectivity. Ideal for concert halls, touring PA, and outdoor events where consistent coverage and robust build quality are paramount.
Includes
- GAE Director Top
STAGE22.1.100.000
