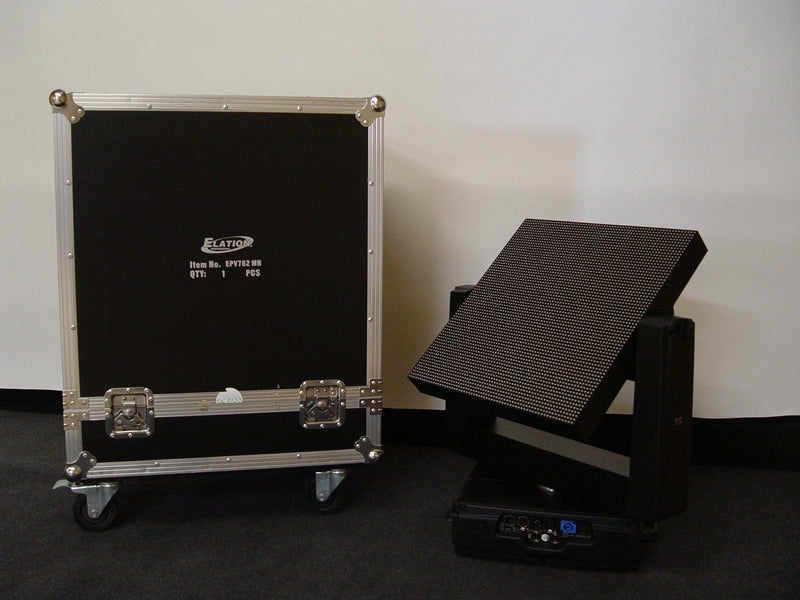

The Elation EPV762 MH is a moving LED video panel designed for dynamic, high-impact indoor displays. With a 7.62 mm pixel pitch and a 64 x 64 pixel matrix, it delivers crisp content at 2000 nits with a high ≥2400 Hz refresh rate and 16-bit processing for smooth, flicker-free performance on camera. The motorised head offers 540°/630° pan and 265° tilt with 16-bit resolution and seven built-in movement programs, enabling creative motion effects without additional rigging systems. Connectivity is robust, with Ethercon for data and PowerCON for power linking, plus both 3-pin and 5-pin XLR for serial I/O. The compact 488 x 488 mm frame and included Omega clamps simplify installation, and the multi-voltage PSU supports 100–240 V operation. Supplied with a flight case and short link cables, it’s ready for quick deployment and efficient touring. Ideal for concerts, corporate events, trade shows and TV applications where agile, high-contrast LED visuals are required.
Includes
- Flight case
- 2 x 1/4-turn Omega clamps
- 0.4 m power and signal link cable
- 1 m power and signal link cable
STAGE22.8.100.40
