The Ecler MIMO1212SG is a professional 12x12 DSP audio matrix designed for fixed installations that require dependable routing and precise signal control. Operating at 48 kHz with 24-bit converters and ultra-low latency under 3.2 ms, it delivers clean, consistent audio performance. Each channel offers comprehensive processing: parametric EQ, high/low‑pass filters (Butterworth, Bessel, Linkwitz‑Riley), delay, compressor/limiter, noise gate and polarity. Inputs 1–4 add a frequency‑shifter feedback reducer to increase gain before feedback in live microphone applications. Commissioning and day-to-day use are simplified with integrated paging (priorities and chimes) and an onboard signal generator providing sine, pink and white noise.
Integration is straightforward via 10/100 Ethernet, Remote Bus and 8 GPIs, with an auxiliary +12 VDC feed for remotes. Phantom power (+42 VDC) is software-switchable, while generous headroom, low THD+N and strong dynamic range ensure clarity throughout the signal path. Housed in a compact 1U chassis with universal mains input, it’s ideal for multi‑zone hospitality, retail, corporate, education and worship venues seeking reliable matrixing and advanced processing in a single unit.
Includes

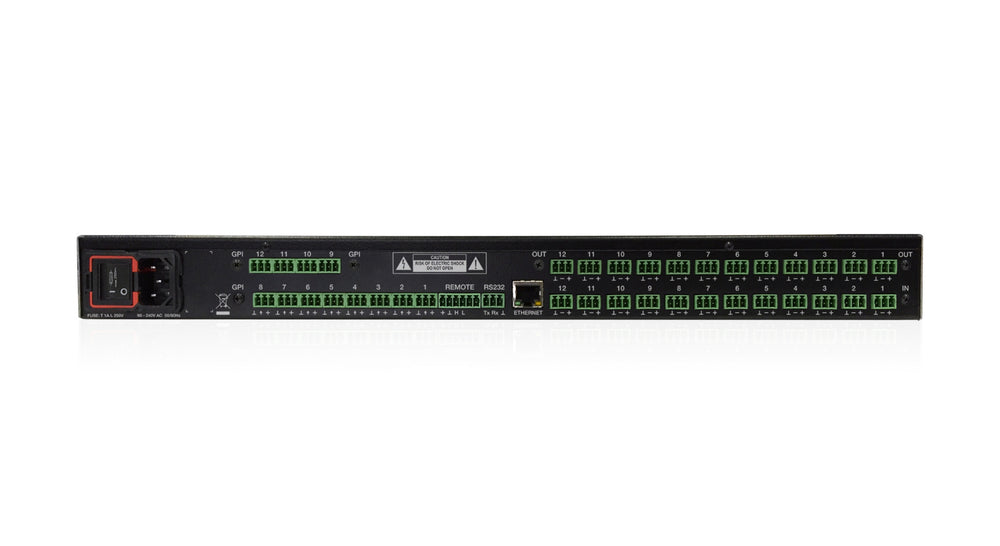

- Ecler MIMO1212SG 12x12 DSP Matrix Processor for Installation
