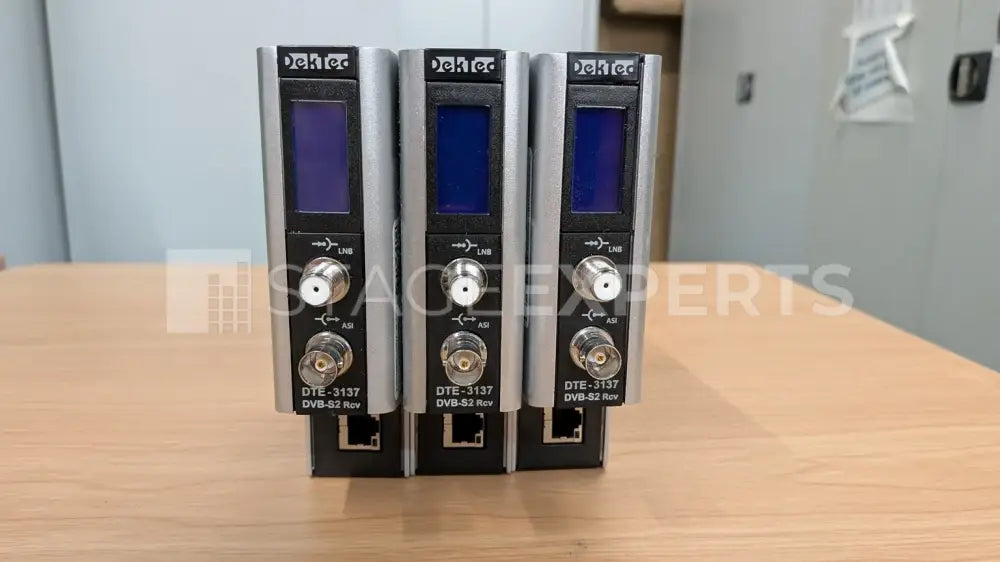

The DekTec DTE-3137 is a professional, networked DVB-S/DVB-S2 receiver designed for reliable transport stream acquisition and handoff in broadcast and IPTV workflows. It demodulates full DVB-S/S2 transport streams and outputs via DVB-ASI or Gigabit Ethernet (TS over IP), with support for UDP/RTP and SMPTE 2022-1/2 Forward Error Correction. An integrated LCD provides at-a-glance status, including frequency, level, SNR and BER, while a web interface and SNMP v2c enable straightforward configuration and remote monitoring.
Covering 950–2150 MHz L-band with 2–40 MBd symbol rates, it supports DVB-S2 QPSK/8PSK/16APSK/32APSK (CCM) and delivers up to 108 Mbit/s transport stream bitrate. LNB control includes 13/18 V power up to 400 mA and a switchable 22 kHz tone. Connectivity comprises an F-type satellite input, 75-ohm BNC DVB-ASI output, and RJ45 Gigabit Ethernet. Power options include PoE+ (IEEE 802.3at) or external 24 V DC, housed in a compact metal chassis with mounting points.
Ideal for headends, broadcast infrastructure, monitoring systems and professional signal distribution where dependable DVB-S/S2 to ASI or TS over IP conversion is required.
Includes
- DekTec DTE-3137 DVB-S/S2 receiver
