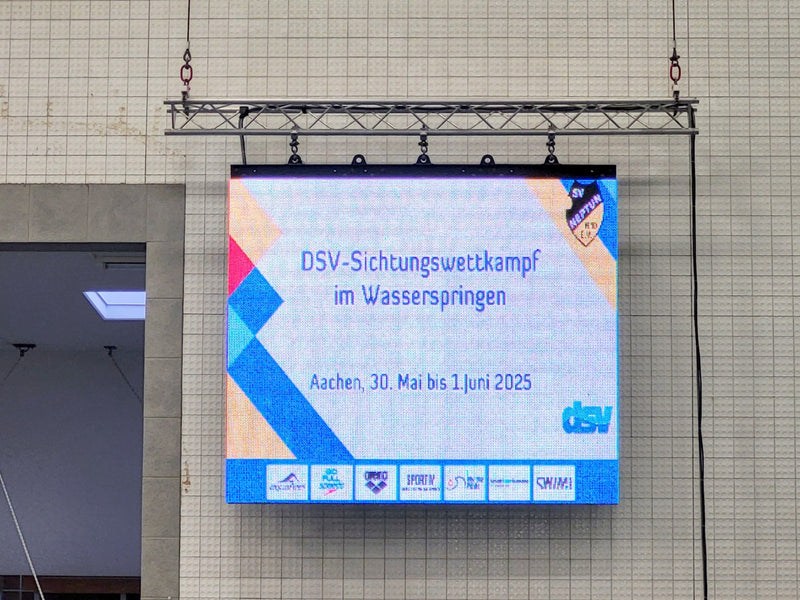

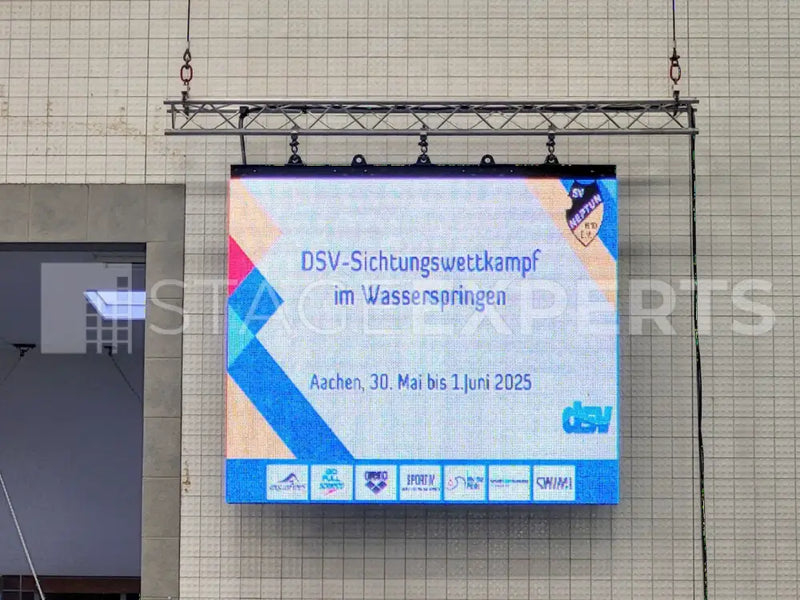

Outdoor P10 LED video wall measuring 2.88 m x 2.40 m, supplied complete with LedSync 820B video processor and ZDEC ZQLS-PC-01 sending box. Originally installed in 2008 and still fundamentally operational, this wall uses 1R1G1B P10 modules and is built from nine metal cabinets housing a total of 270 panels (160 mm x 160 mm each). In a 3x3 cabinet configuration, the native canvas is 288 x 240 pixels (system max 69,120 pixels), with the LedSync 820B providing onboard scaling and multiple video input options to optimise source compatibility and mapping. The assembly has been hung from a truss via a steel beam in its previous installation; mounting hardware is not included, but a compatible steel support beam may be available by separate arrangement.
A cost-effective, robust solution for permanent outdoor signage, scoreboards or simple large-format visuals where pixel pitch requirements are modest. Ideal for sports facilities, community venues and budget-conscious outdoor display projects.
Includes
- Outdoor P10 LED video wall (2.88 m x 2.40 m)
- LedSync 820B video processor
- ZDEC ZQLS-PC-01 sending box
STAGE22.2.100.800
