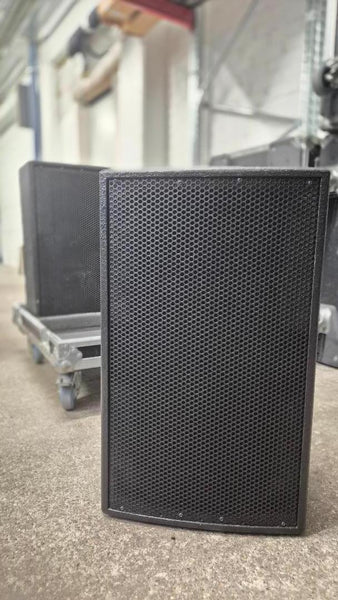

The Concert-Audio V12 is a compact passive 12-inch/1-inch PA loudspeaker designed for professional reinforcement where clarity, output and versatility matter. A 12-inch LF driver partners with a 1-inch compression driver on a rotatable 90° x 75° constant-directivity horn, delivering articulate vocals and consistent coverage in both portrait and landscape orientation. Rated at 400 W programme (800 W peak) at 8 ohms with 99 dB sensitivity and up to 127 dB peak SPL, it offers confident headroom and a balanced, musical response. A precision passive crossover at 1.8 kHz with phase and response correction ensures coherent summation and smooth transitions.
Built from robust 15 mm multiplex with a bass-reflex design, the cabinet is finished in durable black or white texture and protected by a steel grille with acoustic foam. Hardware includes a 35 mm pole mount, three M10 points for brackets, a top carry handle and rubber feet. Connectivity is via 2 x Neutrik Speakon NL4 (pins 1+/-). Measuring 604 x 356 x 345 mm and weighing 24.2 kg, it extends to 67 Hz (-6 dB) for standalone use or pairing with subs. Ideal for speech, corporate AV, live music fills or as a main PA in smaller venues.
Includes
- Concert-Audio V12 Passive 12/1 PA Loudspeaker 8Ω | 400 W ...
STAGE22.6.100.39
