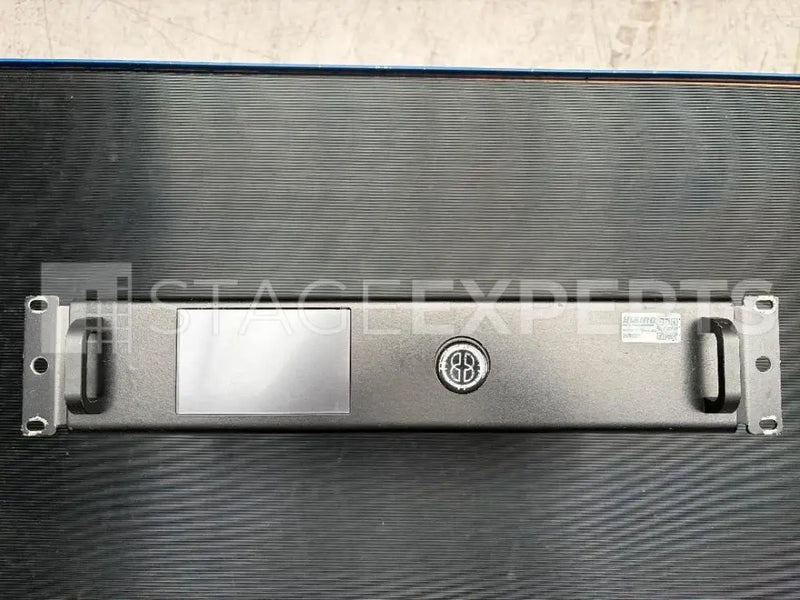

The Brompton Tessera XD is a professional 10G-to-1G data distribution unit designed to work seamlessly with Tessera SX40 LED processors. It carries up to ten independent Tessera 1G outputs over a single 10G link, dramatically simplifying cabling for large LED walls. Connect SX40 to XD via Cat6A copper or singlemode fibre: copper runs up to 60 m, while singlemode fibre reaches up to 2 km using opticalCON DUO (LC-Duplex compatible). At the LED wall, ten robust etherCON ports provide direct, reliable connections to panels. Multiple XD units can be cascaded (up to six in a chain) and deployed at different points in the system. XD also functions as a media converter between copper and fibre and as a 10G repeater for longer signal paths. An integrated display shows link status, associated SX40, and the active project, with options for a custom device name and dark-mode operation. Housed in a rugged 2U 19-inch chassis with powerCON TRUE1 and power-thru, it’s built for touring, broadcast, studios, XR, and large fixed installations.
Includes
- Brompton Tessera XD Data Distribution Unit
STAGE22.6.100.000
