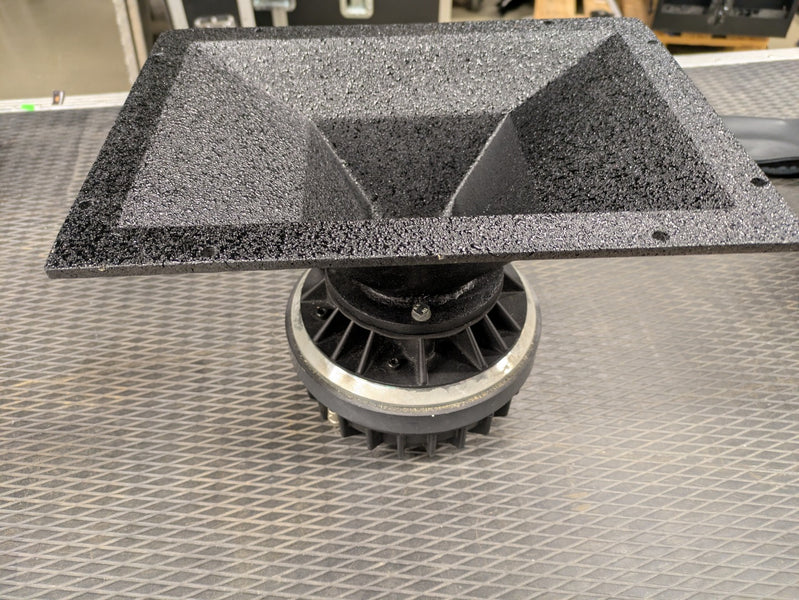

This bundle comprises eight BMS 4590 coaxial compression drivers, each paired with a BMS C16/16 passive crossover (16 Ohm, 6.3 kHz) and a BMS 2230 fibreglass horn. The 4590’s coaxial, point‑source design delivers outstanding phase coherence and time alignment, with an annular midrange diaphragm smoothly covering approximately 400–7000 Hz and an ultra‑light HF diaphragm extending to around 22 kHz. The result is high efficiency, exceptional transient response and extremely low distortion, even at elevated SPLs. Generous diaphragm excursion (±0.8 mm) supports impressive dynamics and robust power handling: mid AES 150 W (above 400 Hz), peak 1000 W (above 500 Hz); HF AES 80 W, peak 450 W. The included BMS 2230 horn provides a 2-inch throat with broad, consistent 90 x 55 degree coverage and a 700 Hz cut-off, making integration straightforward in high-performance touring systems, installed PA, or premium stage monitors where clarity and impact are paramount.
Ideal for building or upgrading compact, phase-accurate point‑source loudspeakers for live sound, install and theatre applications.
Includes
- 8 x BMS 4590 coaxial compression drivers
- 8 x BMS C16/16 passive crossovers (16 Ohm, 6.3 kHz)
- 8 x BMS 2230 horns (2-inch throat, 90 x 55 degrees)
STAGE22.2.100.600
