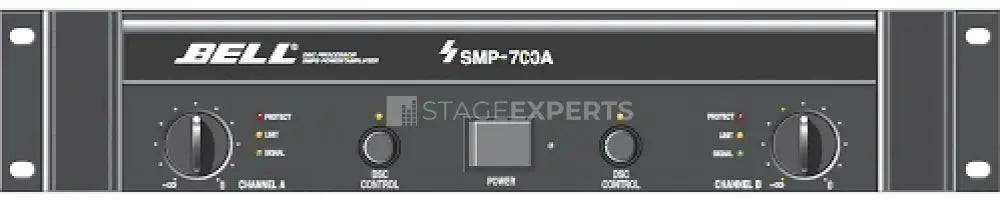

The Bell SMP700A is a rugged Class H power amplifier built around a high‑efficiency switch‑mode power supply, delivering 2 x 350 W into 4 Ω or 700 W bridged into 8 Ω. A per‑channel DSC processor can be engaged to enhance perceived punch and clarity, tightening the low end and opening up the top end when needed. Reliability is assured with a temperature‑controlled fan and comprehensive protection against inrush current, voltage limiting, DC, over‑current, thermal faults and loudspeaker issues.
Connectivity is fully professional: balanced XLR inputs with link outputs, NL4 Speakon speaker outputs, a stereo/bridge mode switch and a ground lift. Each channel features an input gain control and clear status LEDs for signal, limit, protect and DSC active. With a wide 10 Hz–40 kHz frequency response, an excellent 110 dB signal‑to‑noise ratio and THD+N under 0.05%, it provides clean headroom and consistent performance. Housed in a compact 2U chassis (482 x 88 x 445 mm) and weighing just 9.5 kg, it is easy to rack, transport and deploy.
Ideal for portable PA, fixed installations, clubs, houses of worship and rental inventories seeking efficient, dependable power with useful onboard processing.
Includes
- Bell SMP700A Power Amplifier – Class H SMPS, 2x350W output
STAGE22.6.100.20
