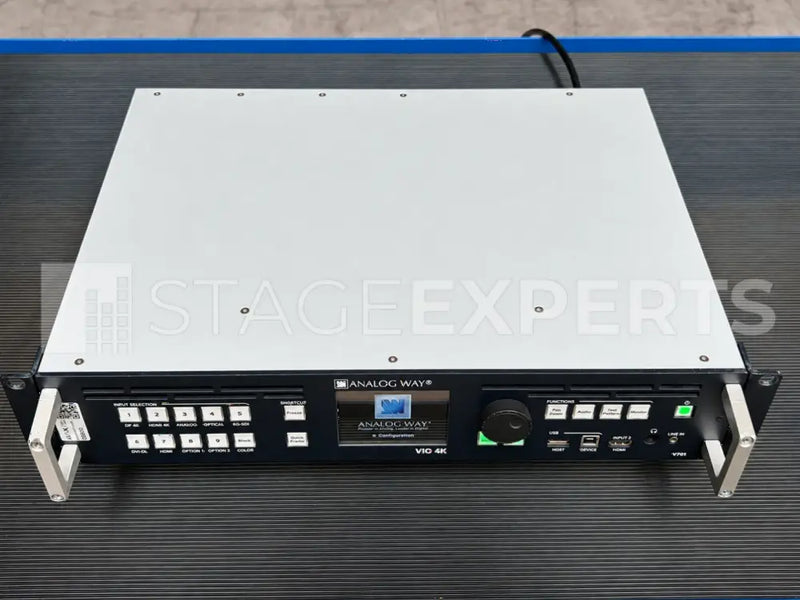

The Analog Way VIO 4K (V701) is a professional multi‑format video processor that combines high‑quality scaling, scan‑conversion, switching and format conversion in a rugged 2U, 19‑inch chassis. This configuration includes the OPT-4K60P HDMI 2.0/DisplayPort 1.2 4K60 I/O board and the OPT-AUDIOXLR XLR audio expansion, enabling true 4K60 4:4:4 processing with low, one‑frame latency and professional audio integration. Natively equipped with HDMI, DisplayPort, Dual‑Link DVI, 6G‑SDI, universal analogue and a video SFP slot, the VIO 4K handles a wide range of digital and analogue sources and converts them to virtually any required output format. The 4K60 option delivers up to UHD/DCI 4K at 60 Hz with full‑bandwidth colour, ideal for detailed computer content and LED walls, while the XLR board provides four channels (two stereo pairs) of balanced analogue or AES3/AES‑EBU digital audio with embedding/de‑embedding and up to 300 ms delay. Advanced features include EDID management, genlock/framelock, LED‑wall tools, custom resolutions, rotation, test patterns and a built‑in 3.5‑inch colour display for source preview. Perfect for live events, broadcast control rooms and high‑end fixed installations.
Includes
- Analog Way VIO 4K V701 main unit
- OPT-4K60P HDMI 2.0/DisplayPort 1.2 4K60 I/O expansion board
- OPT-AUDIOXLR XLR audio expansion board
