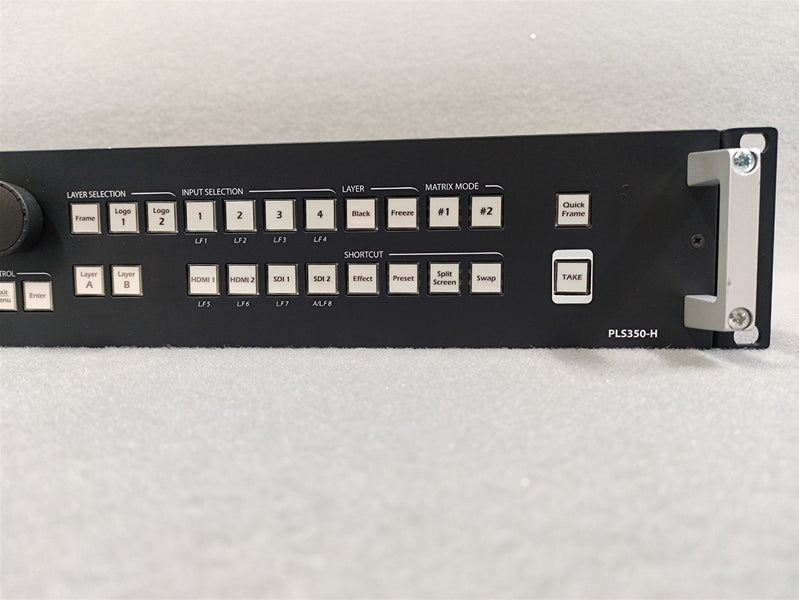

The Analog Way Pulse² PLS350-H is a professional HDBT-equipped presentation mixer and scaler designed for seamless live production and corporate events. It offers flexible, scaled inputs including 2x VGA, 2x DVI, 4x HDMI and 2x SDI, feeding scalable outputs via 2x HDMI and 1x SDI. With two independent scalers/layers, PIP, eight user presets, and selectable mixer or matrix operating modes, it delivers smooth transitions and polished shows. Comprehensive audio handling includes 4x 5-pin Phoenix inputs, de-embedding/embedding to HDMI, SDI (BNC), S/PDIF on RCA, plus 2x 5-pin Phoenix outputs, supporting 2–8 channels in analogue or digital domains.
Standards compliance covers HDMI 1.0, single-link DVI-D up to 165 MHz and SDI per SMPTE 259M/292M/344M/425M. EDID management and adjustable HDCP ensure reliable source compatibility, while preview/program operation streamlines show control. Connectivity and control are versatile via LAN (RJ45), RS-232, local operation or software. Universal power (100–240 V), 155 W consumption, and a compact 440 × 400 × 88 mm chassis at 7.2 kg suit touring and installed systems alike.
Ideal for conferences, hybrid events, education and houses of worship where reliable multi-format switching, clean scaling and professional audio integration are essential.
Includes
- Analog Way Pulse² PLS350-H HDBT video mixer
