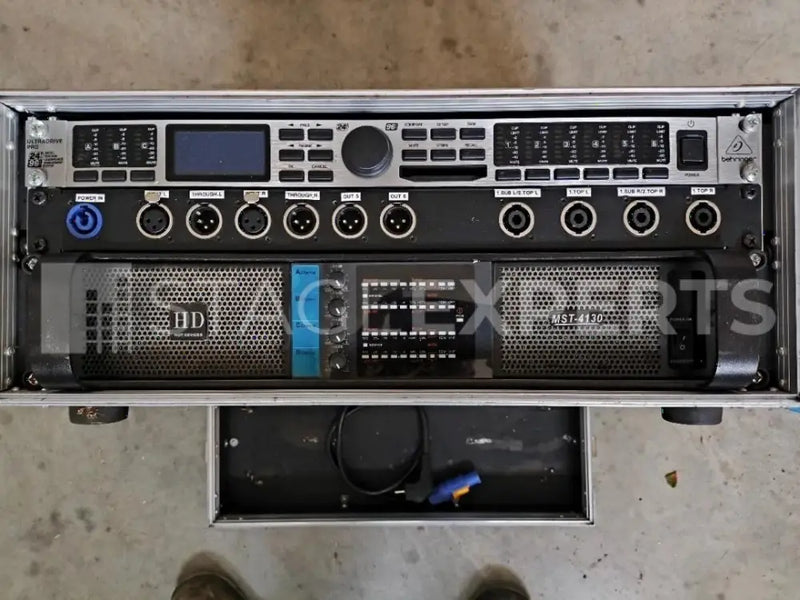

Professional, self-built amp rack combining heavyweight power with tidy, reliable infrastructure. At its heart is a Mastersound MST-4130 4-channel power amplifier delivering approx. 4 x 1300 W at 8 ohm, 4 x 2200 W at 4 ohm, or 2 x 4400 W at 4 ohm in bridged mode. Loudspeaker management is handled by a Behringer Ultradrive Pro DCX2496, giving flexible crossover, EQ and delay. The front-mounted patch panel is clearly labelled for 4-channel operation (also usable as 2-channel), with original Neutrik connectors for robust, tour-ready connectivity. A front PowerCON inlet simplifies mains access, while a rear-mounted power strip keeps cabling neat. A USB lead is included for controller programming, and a single XLR female panel socket is currently wired as a mono sum and can be reassigned if needed. Neatly wired for maximum performance in minimal space, this rack offers a practical, high-output solution for PA systems where speed, reliability and compact footprint matter. Ideal for mobile sound, small to mid-scale events, and rental inventories.
Includes
- Mastersound MST-4130 4-channel power amplifier
- Behringer Ultradrive Pro DCX2496 loudspeaker controller
- Front-mounted patch panel with Neutrik connectors
- Front PowerCON mains inlet
- Rear-mounted power strip
- USB cable for controller programming
- Single XLR female panel socket (mono sum, reconfigurable)
- 19-inch rack case
STAGE22.6.100.17
