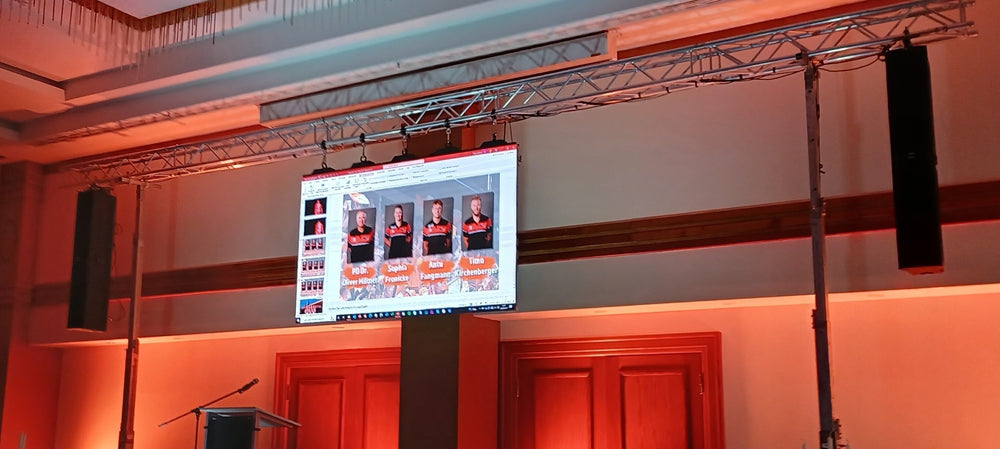

This American DJ AV3 LED Wall set delivers a professional indoor display measuring 2.5 x 1.5 metres, built from 15 x 500 mm AV3 panels. With a 3.91 mm pixel pitch, 1000 nits brightness and wide 120° viewing angles, it offers crisp, uniform visuals for corporate, live event and fixed installation use. Each panel features 128 x 128 SMD2121 LEDs and tool-free magnetic module servicing for quick maintenance. PowerCON and EtherCON in/out ensure robust connectivity, while integrated NovaStar receiving cards work seamlessly with the included NovaStar VX4S switcher/scaler for straightforward setup and reliable processing. The system can be flown flat or curved up to ±20° per panel for creative designs. Supplied with five rigging bars and two dedicated cases for the panels, this package is engineered for efficient deployment and protected transport. In a typical 5 x 3 configuration, the wall achieves a native resolution of 640 x 384 pixels, ideal for presentations, IMAG, branded content and dynamic signage. A versatile, tour-ready LED solution for stages, conferences and venues.
Includes
- 15 x American DJ AV3 indoor LED panels
- 5 x American DJ AV3RB1 rigging bars
- 2 x flight cases for AV3 LED panels
- 1 x NovaStar VX4S switcher/scaler in case
STAGE22.1.100.1500
