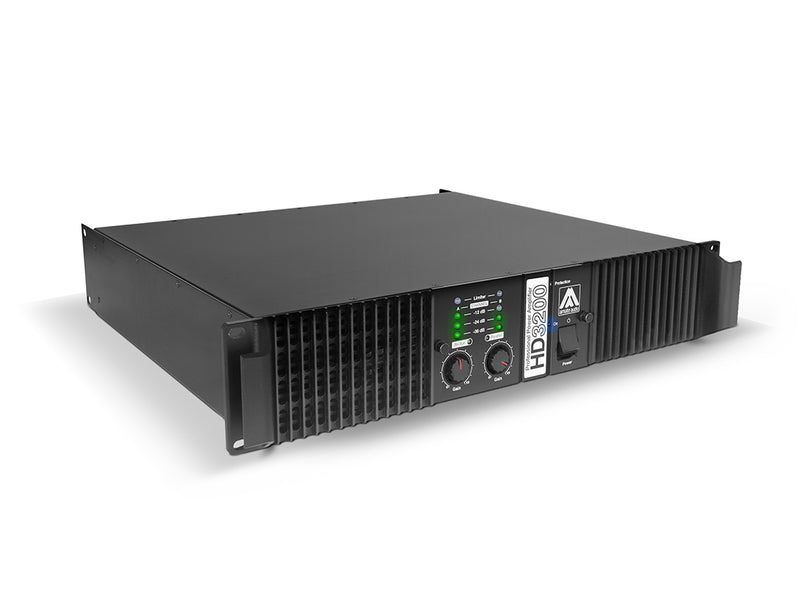

The Amate Audio HD3200 is a rugged, high‑performance Class‑H, two‑channel power amplifier designed for professional sound reinforcement. It delivers 2 x 1750 W RMS into 4 Ω (1000 W into 8 Ω, 2500 W into 2 Ω) and up to 5000 W bridged into 4 Ω, providing generous headroom for demanding PA systems. With a 20 Hz–20 kHz frequency response (0/‑1 dB), a damping factor of 400 (1 kHz @ 8 Ω), crosstalk of 65 dB and a 108 dB(A) signal‑to‑noise ratio, it offers clean, controlled output and excellent fidelity. The input stage features 32 dB gain, 2 V sensitivity and 20 kΩ input impedance, with a ±12 V/μs slew rate for confident transient handling. Comprehensive protection includes soft‑start, clip limiting, over‑voltage and thermal protection, plus output short‑circuit protection, ensuring reliable operation in tough conditions. The 2U chassis (88 x 482 x 440 mm) weighs 21 kg and is ready for standard 19‑inch rack installation. Mains operation is 220–240 V AC, 50/60 Hz. Supplied new with a 2‑year warranty for added peace of mind. Ideal for fixed installations and hard‑working touring rigs where power, control and reliability are paramount.
Includes
- Amate Audio HD3200 Amplifier – 2x1750W @4Ω, New with Warr...
STAGE22.9.100.25
