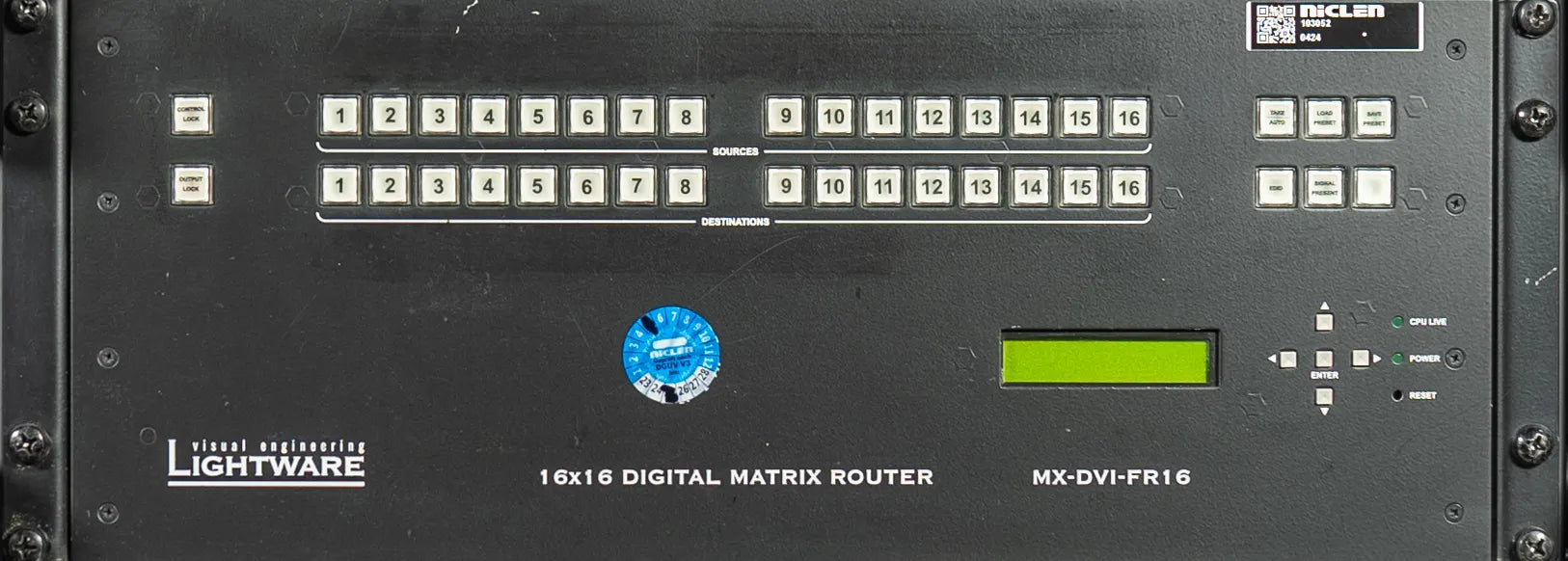

The Lightware MX 16×16 DVI‑HDCP Pro is a professional, modular matrix switcher built for dependable, secure DVI/HDMI routing in demanding AV environments. Offering up to 16 inputs and 16 outputs, it supports DVI 1.0 with HDMI 1.3 compatibility via HDCP, enabling flexible system design for multi‑screen rooms and multi‑source workflows. Comprehensive EDID management simplifies setup and device interoperability, with 50 factory presets, 50 user slots and 256‑byte EDID v1.3 emulation. Operation is straightforward via the front‑panel controls and LCD, while integration is seamless with RS‑232/422 and 10/100 Ethernet for third‑party control.
Engineered for reliability, the chassis employs forced‑convection cooling with dual 119 mm fans, and meets EMC and RoHS standards. At approximately 9.8 kg and rack‑mountable, it fits neatly into fixed installations or portable racks. Low 12 W power consumption keeps heat and running costs in check, supporting continuous operation.
Ideal for corporate presentation suites, higher education, command and control rooms, and premium residential systems where robust 16×16 DVI/HDCP routing, stable operation and straightforward control are essential.
Includes
- Lightware MX 16x16 DVI‑HDCP Pro Matrix Switcher, DVI/HDMI
