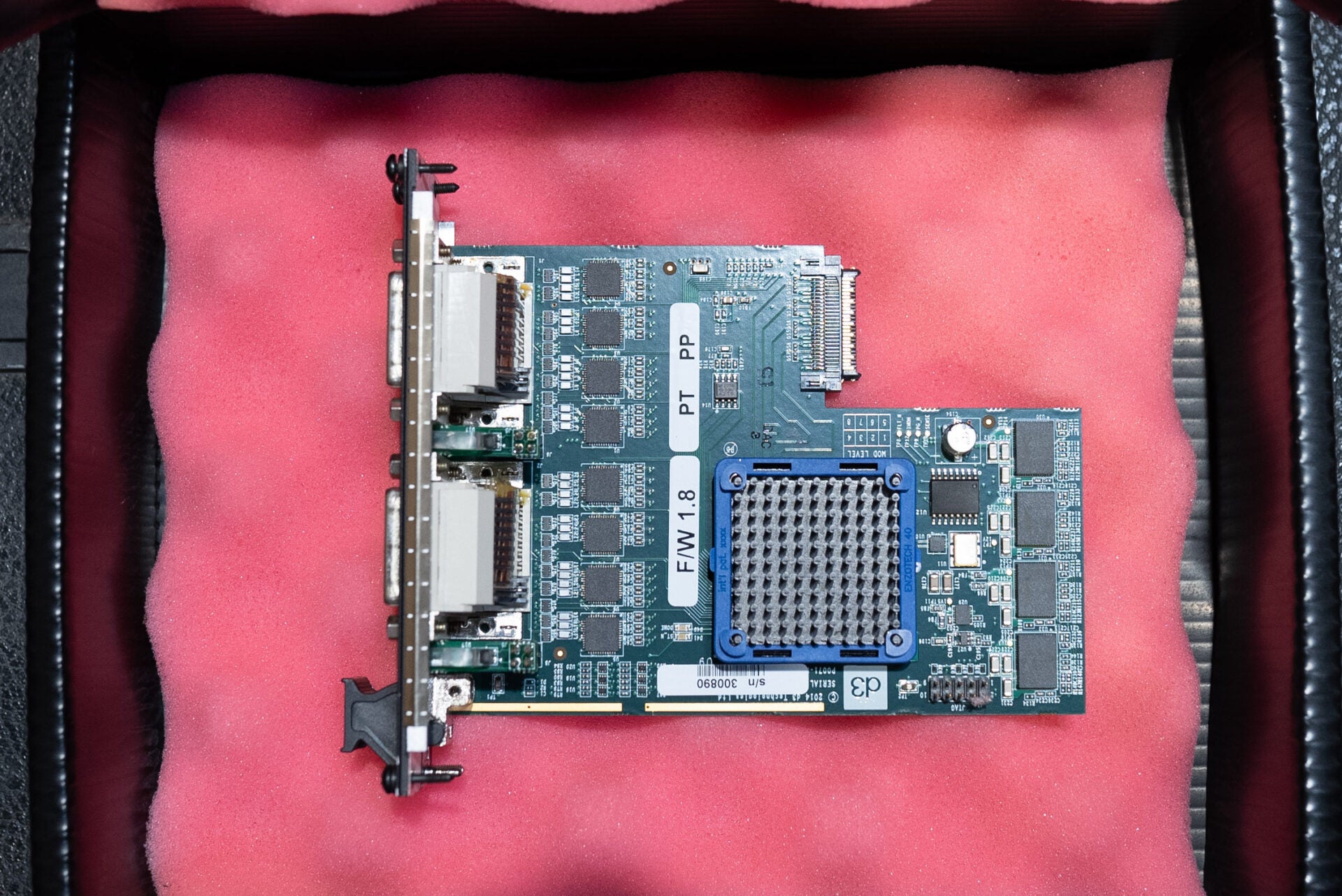

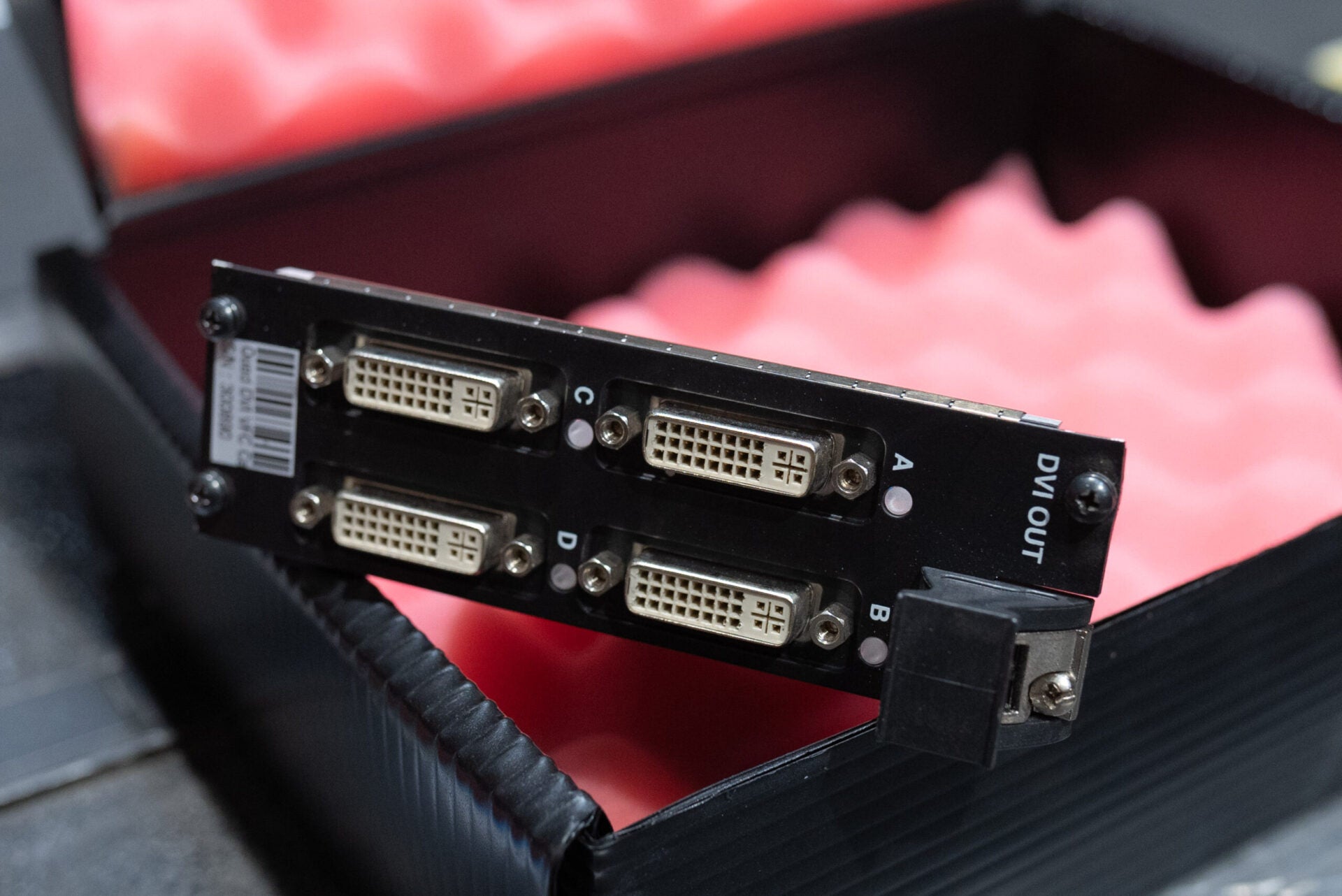

The Disguise Quad DVI VFC Card expands compatible Disguise media servers with flexible, high‑quality DVI video output. With four Dual‑Link DVI ports on board, it can be configured as a single 2K DCI output or four independent HD feeds in quad‑split mode, ideal for multi‑screen, mosaic and pixel‑mapped LED workflows. It supports resolutions up to 2K DCI at frame rates up to 60 Hz, delivering dependable performance for live events and permanent installs. Genlock capability ensures frame‑accurate synchronisation across complex systems, while ultra‑low latency of just 4–5 scanlines keeps visuals tightly aligned with audio, cameras and stage action. The card handles RGB and YCbCr 4:2:2 colour at up to 8‑bit depth, and integrates cleanly into SDR pipelines; HDR and PTP are not supported. Compatible with Disguise GX, VX and Pro series servers, it offers a straightforward path to scaling output counts and adapting to DVI‑based processors and projectors without additional external converters. A solid, reliable choice for driving LED processors, multi‑projector blends and broadcast displays where timing, stability and image quality matter.
Includes
- Disguise Quad DVI VFC Card – Video Format Conversion
STAGE17.1.100.500
