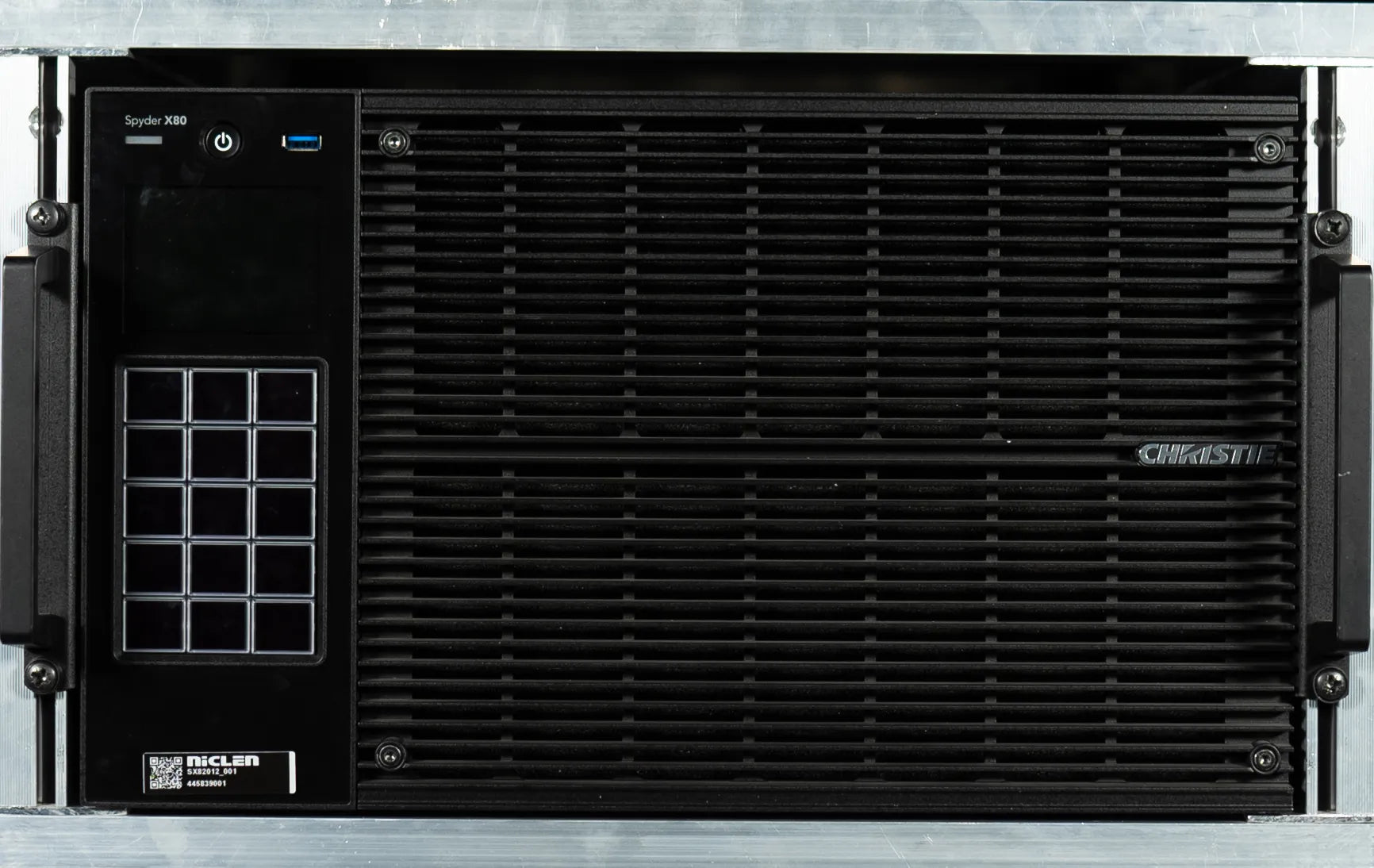

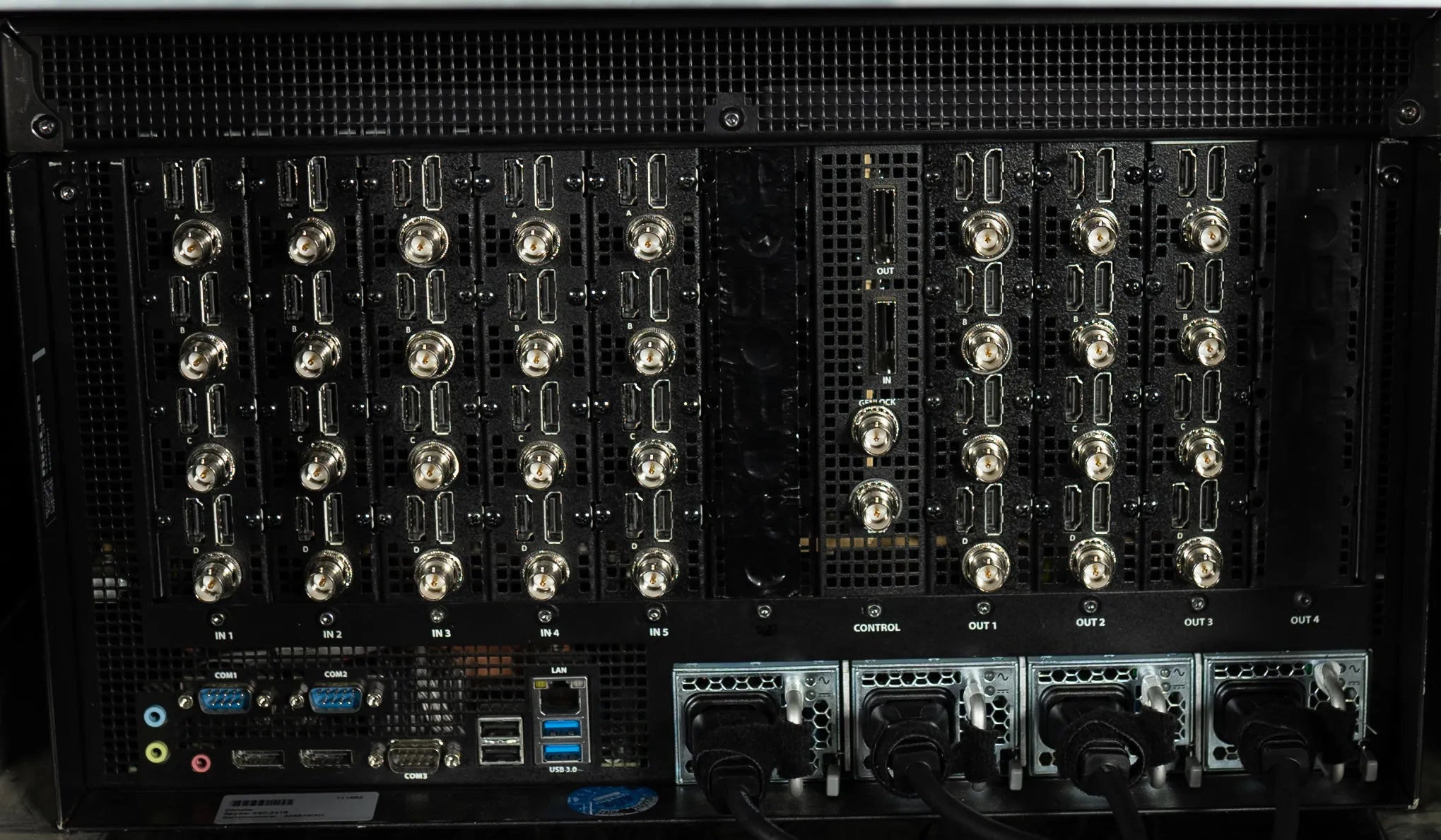

The Christie Spyder X80 is a high‑end multi‑screen presentation switcher and processor engineered for uncompromising 4K workflows. It delivers up to 4K/60 on every channel with ultra‑low latency, offering 80 megapixels at 8‑bit or 53 megapixels at 12‑bit for exceptional image fidelity. With 20 inputs and 12 outputs supporting HDMI 2.0, DisplayPort 1.2 and 12G‑SDI, it handles mixed formats effortlessly with HDCP 2.2 compliance. Integrated scaling and conversion manage interlaced sources, aspect ratios and frame rates, while custom EDID and an intuitive GUI streamline set‑up.
Advanced toolsets include user‑configurable multiviewers, edge blending, tiling, per‑output rotation, window borders and drop shadows. Online edit mode enables safe, live programming, with Spyder Studio software for robust offline configuration. Enhanced auto‑sync and broad external control options, including the optional Christie Shot Box, support fast, reliable operation. Redundant hot‑swappable power supplies and cross‑point hardware switching maximise resilience, and MST allows a single 4K output to be split into up to four independent HD feeds.
Ideal for live events, corporate shows, control rooms and large‑scale projection or LED canvases where flexible routing and pristine visuals are essential.
Includes
- Christie Spyder X80 Presentation Switcher | 4K60
