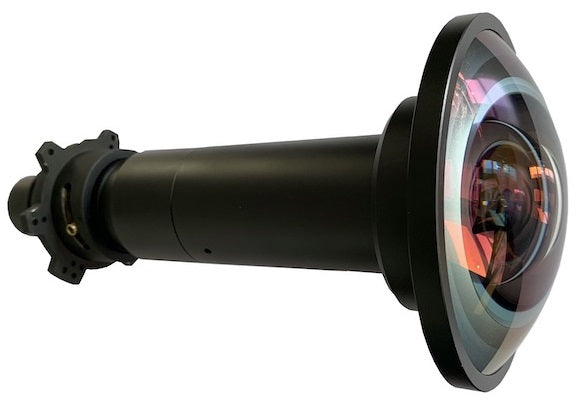

The Panasonic Rebeam 184° Dome Lens is designed for immersive dome and hemispherical projection, delivering clean, near-distortionless 180°/184° imagery on curved surfaces. Its fixed 3.00 mm focal length and 92° maximum half-angle provide exceptionally wide coverage, while the telecentric optical design maintains consistent sharpness and geometry across the frame. Manual focus from 600 mm to infinity ensures precise setup in a range of installations.
With an F2.2 aperture and minimal edge fall-off, the lens offers robust low-light performance. Optical quality is supported by a 9.1 mm image circle, MTF of 66% on-axis and 55% at the edge (67 lp/mm), and tightly controlled lateral chromatic aberration (<4 µm R–G, <2 µm B–G). Built from premium glass and metal, it is engineered for reliability in demanding environments. Compatible mounts are available for 1‑chip DLP 0.67-inch projectors from Panasonic, Barco, Christie, Digital Projection, Optoma, Vivitek, Acer and Sharp.
Ideal for planetariums, simulation, fulldome content and experiential venues where ultra-wide, accurate imaging on curved surfaces is essential.
Includes

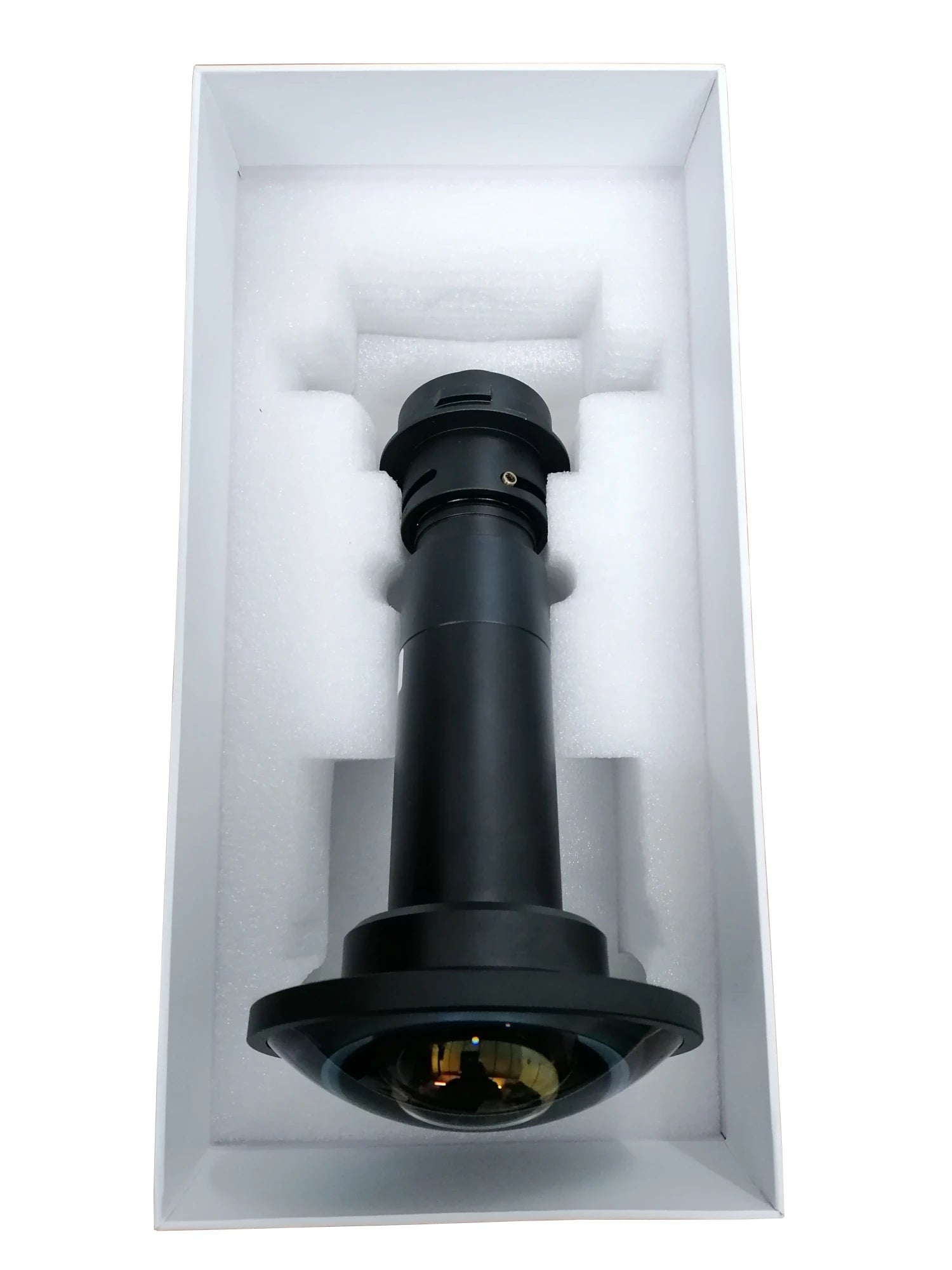

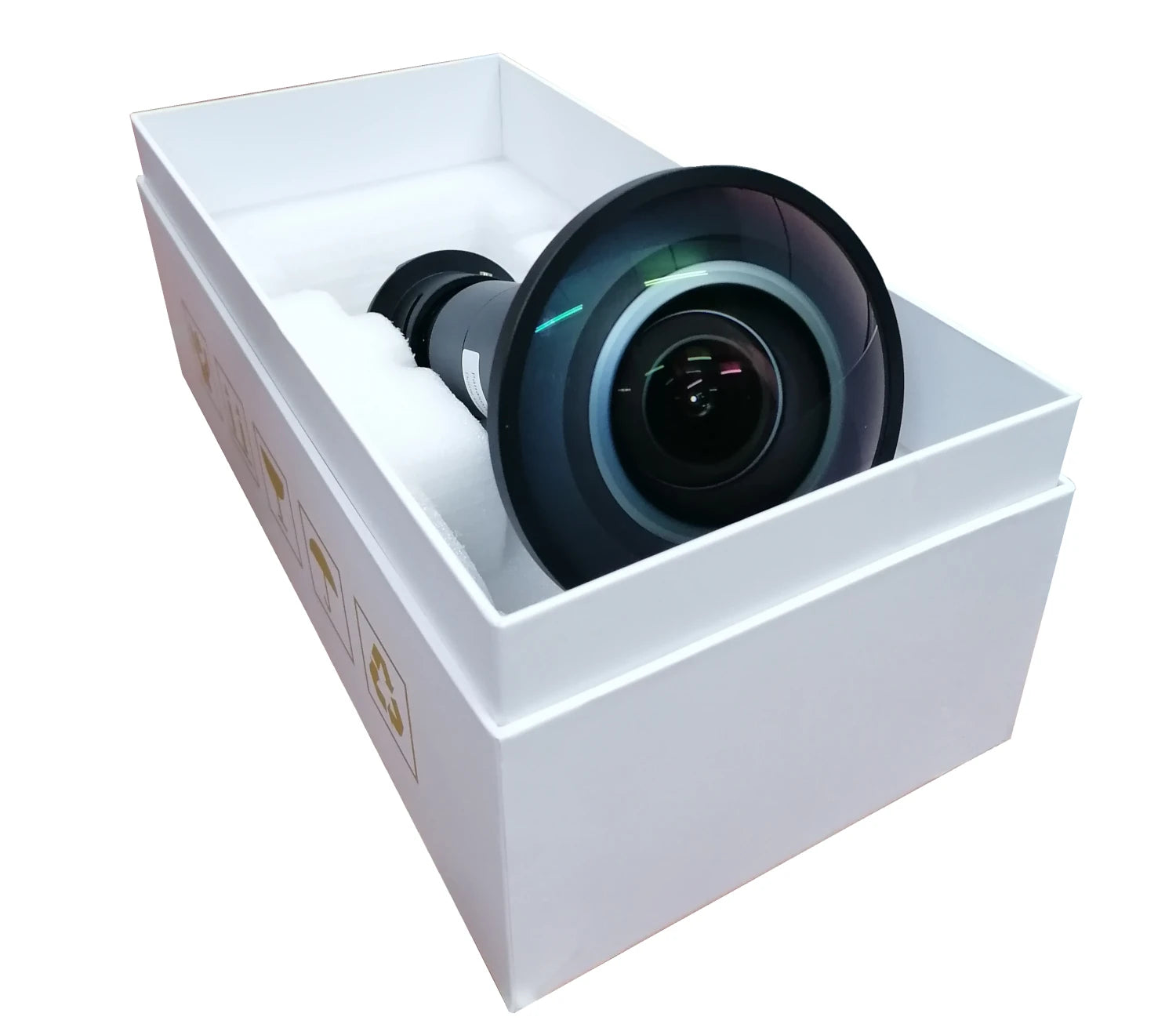

- Panasonic Rebeam 184° Dome Lens | 0.67" DLP, F2.2
